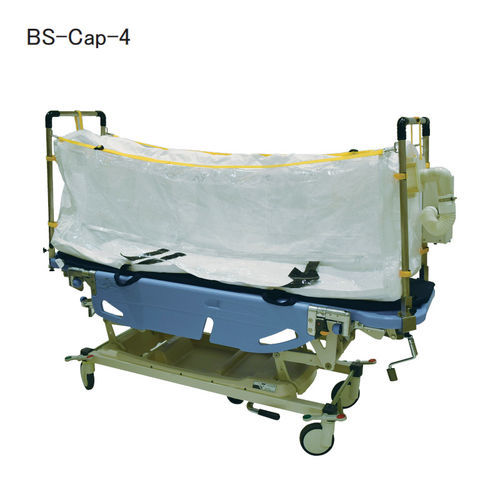

Patient transfer unit with window BS-Cap-4

Intended use
Negative-pressure stretcher system for patient transport within healthcare facilities. The vinyl hood is maintained under negative pressure to contain coughs and aerosols. Air from inside the hood is exhausted through an ultra-high-efficiency air filter. (For intra-hospital transport only; not for mounting in ambulances.) (This intra-hospital type is in continuous production and supply.)

Key features

• The patient stretcher is covered by a vinyl hood.
• The interior is maintained under negative pressure to contain coughs and aerosols.
• Air inside the capsule is exhausted through a PTFE ULPA ultra-high-efficiency filter.
• Stretcher height is steplessly adjustable (standard stretcher: Paramount Bed KK-736B).
• Operates on AC100V; battery operation is possible (approx. 1.5 hours).

Specifications
Model: BS-Cap-4
Filtration efficiency: 99.9995% or higher for 0.1–0.2 μm particles
Filter element: PTFE ULPA filter (exhaust)
Airflow: approx. 0.5 m³/min
Operation: battery operation or AC100V power
Power: battery (approx. 1.5 hours on batteries); AC100V single-phase operation (with AC adapter)
Weight: approx. 77 kg
Overall dimensions: W2,000×D660×H1,260–1,600
Construction: Exhaust unit: steel plate; Filter: PTFE ULPA (plastic frame); Hood: colorless transparent vinyl curtain + white tarpaulin or transparent vinyl curtain

Features / Technical specifications

• Model: BS-Cap-4
• Filtration efficiency: 99.9995% or higher for 0.1–0.2 μm particles
• Filter element: PTFE ULPA filter (exhaust)
• Airflow: approx. 0.5 m³/min
• Operation modes: battery operation or AC100V power (battery provides approx. 1.5 hours)
• Power supply: batteries and AC100V single-phase (AC adapter)
• Weight: approx. 77 kg
• Dimensions: W2,000×D660×H1,260–1,600
• Structure: Exhaust unit (steel plate), Filter (PTFE ULPA, plastic frame), Hood (transparent vinyl curtain + white tarpaulin or transparent vinyl curtain)
