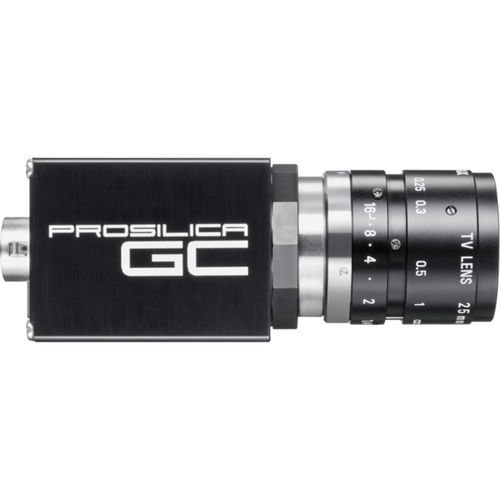

Ophthalmology camera Prosilica GC 1600H
digitalCCDCMOS

ophthalmology camera
ophthalmology camera
Add to favorites
Compare this product


Characteristics

Applications
ophthalmology
Technology
digital
Sensor type
CMOS, CCD
Resolution
2 Mpx

Description

he Prosilica GC is a GigE camera with an ultra-compact, lightweight housing, fast frame rates, and auto-iris control. It offers a large choice of CCD and CMOS sensors up to 5 Megapixels and fits a wide range of applications. SPECIFICATIONS Interface - IEEE 802.3 1000baseT Resolution - 1620 (H) × 1220 (V) Sensor - Sony ICX274 Sensor type - CCD Progressive Sensor size - Type 1/1.8 Pixel size - 4.4 µm × 4.4 µm Shutter mode - Global shutter Lens mount (default) - C-Mount Max. frame rate at full resolution - 25 fps ADC - 12 Bit Image buffer (RAM) - 64 MByte IMAGING PERFORMANCE Imaging performance data is based on the evaluation methods in the EMVA 1288 Release 3.1 standard for characterization of image sensors and cameras. Measurements are typical values for monochrome models measured at full resolution without optical filter. Quantum efficiency at 529 nm - 70 % Temporal dark noise - 10.7 eˉ Saturation capacity - 3300 eˉ Dynamic range - 49.3 dB Absolute sensitivity threshold - 11.2 eˉ OUTPUT Bit depth - 8/12 Bit Monochrome pixel formats - Mono8, Mono12, Mono12Packed Raw pixel formats - BayerRG8, BayerRG12, BayerRG12Packed OPERATING CONDITIONS/DIMENSIONS Operating temperature - 0 °C to +50 °C ambient (without condensation) Power requirements (DC) - 5 to 25 VDC Power consumption - 3.3 W at 12 VDC Mass - 105 g Body dimensions (L × W × H in mm) - 59 × 46 × 33 (including connectors) Regulations - CE: 2014/30/EU (EMC), 2011/65/EU, including amendment 2015/863/EU (RoHS); FCC Class A; CAN ICES-003 FEATURES Image control: Auto Auto exposure Auto gain Auto white balance (color models) Image control: Other Binning Black level
