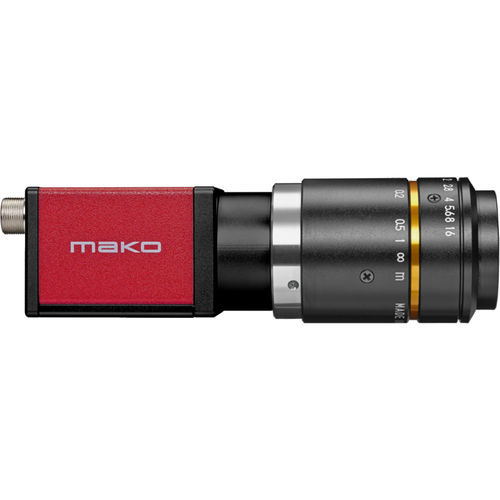

Inspection camera Mako G-223

inspection camera
inspection camera
Add to favorites
Compare this product


Light source


Mako is an attractively priced GigE Vision-compliant camera in a compact rugged industrial housing. Many models include advanced functionalities such as Precision Time Protocol (PTP), Trigger over Ethernet (ToE) Action Commands, and Power over Ethernet (PoE). Screw mount RJ45 connector and multiple I/Os facilitate your straightforward system integration. Mako cameras are also avilable as Near Infrared (NIR) and polarizer variants. SPECIFICATIONS Interface - IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE) Resolution - 2048 (H) × 1088 (V) Sensor - CMOSIS/ams CMV2000 Sensor type - CMOS Sensor size - Type 2/3 Pixel size - 5.5 µm × 5.5 µm Shutter mode - Global shutter Lens mounts (available) - C-Mount, CS-Mount Max. frame rate at full resolution - 49 fps ADC - 12 Bit Image buffer (RAM) - 64 MByte IMAGING PERFORMANCE Imaging performance data is based on the evaluation methods in the EMVA 1288 Release 3.1 standard for characterization of image sensors and cameras. Measurements are typical values for monochrome models measured at full resolution without optical filter. Contact Sales or AE for more information. Quantum efficiency at 529 nm - 77 % Temporal dark noise - 13.2 eˉ Saturation capacity - 9800 eˉ Dynamic range - 57.1 dB Absolute sensitivity threshold - 13.7 eˉ OUTPUT Bit depth - 8/12 Bit Monochrome pixel formats - Mono8, Mono12, Mono12Packed Raw pixel formats - BayerGB8, BayerGB12, BayerGB12Packed OPERATING CONDITIONS/DIMENSIONS Operating temperature - +5 °C to +45 °C housing temperature Power requirements (DC) - 10.8 to 26.4 VDC AUX or 802.3at Type 1 PoE Power consumption - 2.4 W at 12 VDC; 2.8 W PoE Mass - 80 g (with C-Mount)
