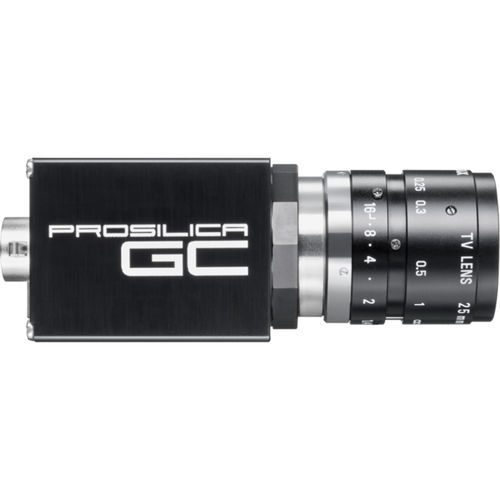

Ophthalmology camera Prosilica GC 1350
digitalCCDCMOS

ophthalmology camera
ophthalmology camera
ophthalmology camera
Add to favorites
Compare this product


Characteristics

Applications
ophthalmology
Technology
digital
Sensor type
CMOS, CCD
Resolution
5 Mpx

Description

The Prosilica GC is a GigE camera with an ultra-compact, lightweight housing, fast frame rates, and auto-iris control. It offers a large choice of CCD and CMOS sensors up to 5 Megapixels and fits a wide range of applications. Options: CS-Mount Optical filters (IR cut filter/Protection glass) SPECIFICATIONS Interface - IEEE 802.3 1000baseT Resolution - 1360 (H) × 1024 (V) Sensor - Sony ICX205 Sensor type - CCD Progressive Sensor size - Type 1/2 Pixel size - 4.65 µm × 4.65 µm Shutter mode - Global shutter Lens mount (default) - C-Mount Max. frame rate at full resolution - 20 fps ADC - 12 Bit Image buffer (RAM) - 16 MByte OUTPUT Bit depth - 8/12 Bit Monochrome pixel formats - Mono8, Mono12, Mono12Packed Raw pixel formats - BayerRG8, BayerRG12, BayerGR12Packed OPERATING CONDITIONS/DIMENSIONS Operating temperature - 0 °C to +50 °C ambient (without condensation) Power requirements (DC) - 5 to 25 VDC Power consumption - 3 W at 12 VDC Mass - 100 g Body dimensions (L × W × H in mm) - 59 × 46 × 33 (including connectors) Regulations - CE: 2014/30/EU (EMC), 2011/65/EU, including amendment 2015/863/EU (RoHS); FCC Class A; CAN ICES-003 Image control: Auto Auto exposure Auto gain Auto white balance (color models) Image control: Other Binning ROI (region of interest) Camera control Acquisition frame rate Auto iris Bandwidth control Event channel Firmware update in the field I/O and trigger control Image chunk data PTP (IEEE 1588 Precision Time Protocol) Stream hold APPLICATIONS Prosilica GC1350 is ideal for a wide range of applications including: Industrial inspection Machine vision Ophthalmology Aeronautical and aerospace Public security Surveillance Traffic imaging
