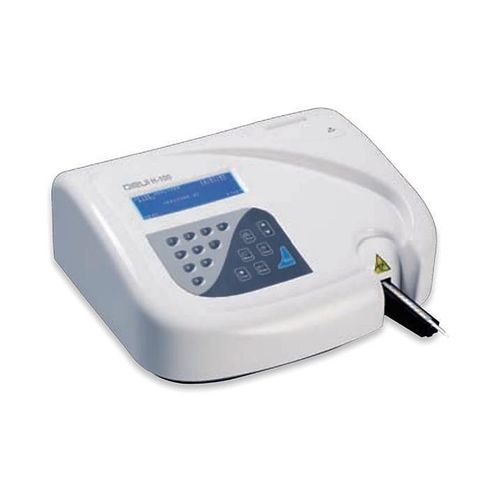

Semi-automatic urine analyzer DIRUI

benchtopcolorimetric

Product Introduction
Adopting the "high luminosity cold light source reflection determination" technology, the DIRUI urine analyzer reduces ambient light interference and provides extended service life. It performs strip-based semi-quantitative biochemical tests in urine within approximately 30 seconds per sample and compensates for variations caused by ambient temperature, ambient light, pH/acid-base effects and abnormally colored samples. The unit can be interfaced with a urine sediment analyzer.

Intended use
This is a semi-automated instrument for semi-quantitative analysis of chemical components in human urine. It is intended for screening of healthy subjects and patients with urinary disorders. The analyzer requires DIRUI supporting reagent strips for testing and has no independent reagent function. Detectable chemical indicators include urobilinogen, bilirubin, ketone, creatinine (optional), blood, protein, microalbumin, nitrite, leukocyte, glucose, specific gravity (colorimetry), pH, vitamin C and urinary calcium (optional).

Key characteristics

• Technology: High luminosity cold light source reflection determination
• Operation: Semi-automated, strip-based semi-quantitative analysis
• Detectable indicators: Urobilinogen, Bilirubin, Ketone, Creatinine (optional), Blood, Protein, Microalbumin, Nitrite, Leucocytes, Glucose, Specific Gravity, pH, Vitamin C, Urinary Calcium (optional)
• Test modes: Double-wavelength reflectivity ratio calculation
• Throughput: 60 tests/hour or 120 tests/hour
• Data storage: Up to 5000 records
• Interface functions: Calibration; Database query; Speed switch; Sequence setting; Language, time and status settings; Units and critical value configuration

Technical specifications

• Test items (abbreviations): Urobilinogen (UBG); Bilirubin (BIL); Ketone (KET); Blood (BLD); Protein (PRO); Microalbumin (MALB); Nitrite (NIT); Leucocytes (LEU); Glucose (GLU); Specific Gravity (SG); pH; Vitamin C (VC)
• Test speed: 60 tests/hour or 120 tests/hour
• Storage capacity: 5000 records
• Dimensions: 385 × 337 × 166 mm
• Power: 40 VA; Supply: 100–240 V~, 50/60 Hz
• Net weight: 3.9 kg

Testing principle
The analyzer uses reflected-light colorimetry: four monochromatic light sources scan the strip reaction area and convert reflectivity changes into electronic signals. A/D conversion and double-wavelength ratio calculations between reference and test reflectivities are used to determine biochemical contents.

Supporting Reagent Strips

• DIRUI Urine Strips-H8 — Cat. No. CU-HMM-0001 — 100 strips/bottle
• DIRUI Urine Strips-H10 — Cat. No. CS-HMM-0002 — 100 strips/bottle
• DIRUI Urine Strips-H11 — Cat. No. CS-HMM-0003 — 100 strips/bottle
• DIRUI Urinalysis Control (Positive) — Cat. No. CS-HMM-0004 — 100 strips/bottle
• DIRUI Urinalysis Control (Negative) — Cat. No. CS-HMM-0005 — 100 strips/bottle

Normal working conditions
Ambient temperature: 15°C–35°C; Relative humidity: ≤75%; Atmospheric pressure: 76–106 kPa; Power supply: 100–240 V~, 50/60 Hz; Avoid direct sunlight.
