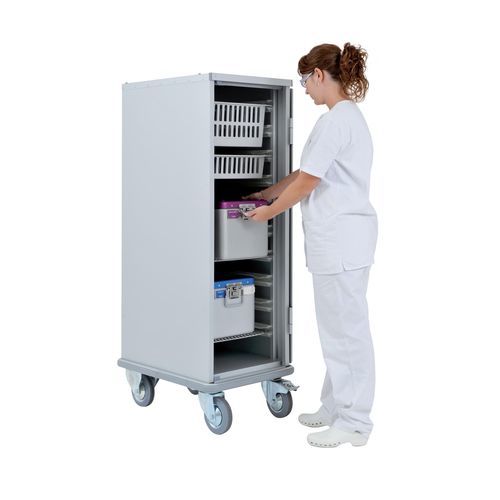

Body in AlMg3 light alloy sheet, anodized (10 micron). Internal frame with 1 section made in anodized light alloy profiles and nylon fiberglass rails with stopping system. Rails gauge 120 mm, with a maximum capacity of 10 ISO trays 100 mm h.
Also suitable for the transport of STE units on wire shelf BLSFL4004. Single wing door built with 2,5 mm bent sheet and welded reinforcements on top and bottom, opening at 270° with stopping magnet for resting position. Door fastening by one vertical thumb-latch hooking on top and bottom. The truck is equipped with an EPDM gasket on top to grant protection of contents from water and dust. One push-handle on a short side. Anodized light alloy strong non-twisting bottom frame. Non-marking grey rubber buffer on bottom. 2 fixed and 2 swivelling wheels dia. 160 mm with non-marking rubber ring and zinc-plated housings.
Rails carrying capacity: 20 kg
Internal dimensions 452 x 665 x 1295 mm h
External dimensions 510 x 765 x 1535 mm h
Weight 47 kg
Wheels diameter 160 mm
Carrying capacity 150 kg
