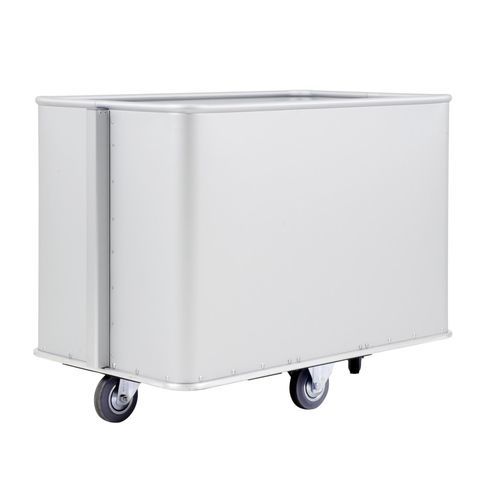

Loading trolley 680 CR 1-2-1

for linenmedicalaluminum

Body in AlMg3 light alloy sheet, anodized (10 micron). Self-levelling platform with 2 side die-cast elements, complete with nylon rolls fit for sliding in light alloy rails, and 1 or 2 steel springs. Strong non-twisting bottom iron frame with epoxy finishing. 2 fixed and 2 swivelling wheels with non-marking rubber ring and zinc-plated housings. RM0680ON002 Internal dimensions 1000 x 600 x 560 mm h External dimensions 1080 x 630 x 800 mm h Capacity 336 l 47 kg Weight 34,80 kg Wheels diameter 125 mm Wheels position 1-2-1 RM0680ON005 Internal dimensions 1390 x 700 x 560 mm h External dimensions 1470 x 730 x 800 mm h Capacity 545 l 95 kg Weight 49 kg Wheels diameter 125 mm Wheels position 1-2-1 RM0680ON334 Internal dimensions 1470 x 900 x 585 mm h External dimensions 1550 x 930 x 850 mm h Capacity 774 l 85 kg Weight 72,2 kg Wheels diameter 125 mm Wheels position 1-2-1
