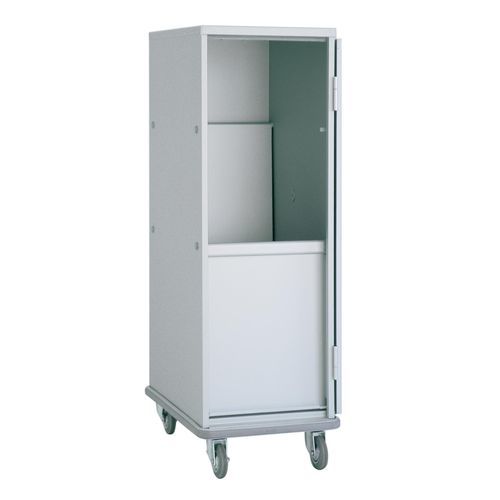

Dirty linen trolley 2550 CR

cleantransportlaundry

Description
Body in AlMg3 light alloy sheet, anodized (10 μm). Two hinged shelves: upper folds to the back, lower folds to the front. Two internal configurations possible:

• loading and transport of clean linen
• loading and transport of dirty linen inside bags

Single-wing door built from 2.5 mm bent sheet with welded reinforcements top and bottom, opening up to 270° with stopping magnet. Door fastening by a vertical thumb-latch hooking top and bottom. EPDM gasket on top for protection against water and dust. One push-handle on a short side. Strong non-twisting bottom iron frame with epoxy powder coating (80 μm). Non-marking grey rubber bumper at base. 2 fixed and 2 swivelling wheels Ø125 mm with non-marking rubber ring and zinc-plated housings. Clearances between shelves: lower 630 mm; middle 407 mm; upper 320 mm.

Product data
Model: RH2550ON001
Description: Cupboard trolley with hinged shelves and single door
Internal dimensions: 700 x 540 x 1420 mm h
External dimensions: 800 x 600 x 1660 mm h
Capacity: 540 l
Weight: 41.50 kg
Wheels diameter: 125 mm

Features / Technical specifications

• Commercial designation: 2550 CR
• Body material: AlMg3 light alloy sheet, anodized (10 μm)
• Number of shelves: 2 hinged shelves (upper folds to back, lower folds to front)
• Shelf carrying capacity: 70 kg each
• Bottom carrying capacity: 100 kg
• Internal configurations: clean linen loading/transport; dirty linen in bags
• Door: single-wing, 2.5 mm bent sheet with welded reinforcements, opens 270° with stopping magnet
• Door fastening: vertical thumb-latch hooking top and bottom
• Sealing: EPDM gasket on top (protection from water and dust)
• Handle: one push-handle on a short side
• Frame: strong non-twisting bottom iron frame with epoxy powder coating (80 μm)
• Buffers: non-marking grey rubber bumper at base
• Wheels: 2 fixed + 2 swivelling, Ø125 mm, non-marking rubber ring, zinc-plated housings
• Clearances between shelves: lower 630 mm; middle 407 mm; upper 320 mm
• Internal capacity: 540 l
• Weight: 41.50 kg
