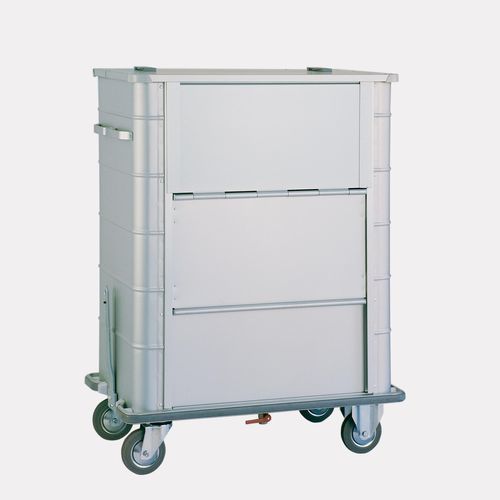

Dirty linen trolley 2050/191 CR

hospitaltransportstorage

Overview
Body in AlMg3 light-alloy sheet, anodized (10 micron). Ribbed, non-perforated walls. Upper rim dia. 20 mm with inner reinforcement. Front door divided in three parts: lower fixed, central sliding and upper hinged. Lid in two parts: 1/3 fixed, 2/3 opening up to 130° with nylon and stainless-steel hinges. One push-handle on a short side. Drain tap. Strong non-twisting iron bottom frame with epoxy finishing (80 micron). Non-marking grey rubber bumper at base. 2 fixed and 2 swivelling wheels Ø 160 mm with non-marking rubber tread and zinc-plated housings.

Product data (from table)
Model: RD2050ON191
Description: Light alloy trolley with lid, front doors and rubber bumper
Internal dimensions: 1000 x 600 x 1165 mm h
External dimensions: 1100 x 650 x 1425 mm h
Capacity: 699 l
Weight: 47.6 kg
Wheels diameter: 160 mm
Wheels position: 2 + 2
Carrying capacity:
Colour:
Material:
Containers:
Vertical section:

Technical features / specifications

• Body material: AlMg3 light-alloy sheet, anodized (10 micron)
• Walls: ribbed, not perforated
• Upper rim: diameter 20 mm with inner reinforcement
• Front door: three-part (lower fixed, central sliding, upper hinged)
• Lid: two-part (1/3 fixed, 2/3 opens up to 130°) with nylon and stainless-steel hinges
• Handle: one push-handle on a short side
• Drain tap included
• Bottom frame: strong non-twisting iron frame with epoxy finishing (80 micron)
• Bottom bumper: non-marking grey rubber
• Wheels: 2 fixed + 2 swivelling, Ø 160 mm, non-marking rubber tread, zinc-plated housings
• Internal dimensions: 1000 x 600 x 1165 mm (h)
• External dimensions: 1100 x 650 x 1425 mm (h)
• Capacity: 699 l
• Weight: 47.6 kg
