Transport trolley 1570 CR
loadingunloadingfor linen

transport trolley
transport trolley
Add to favorites
Compare this product

Characteristics

Applications
transport, loading, unloading
Use
for linen
Components
with shelf
Other characteristics
medical, aluminum

Description

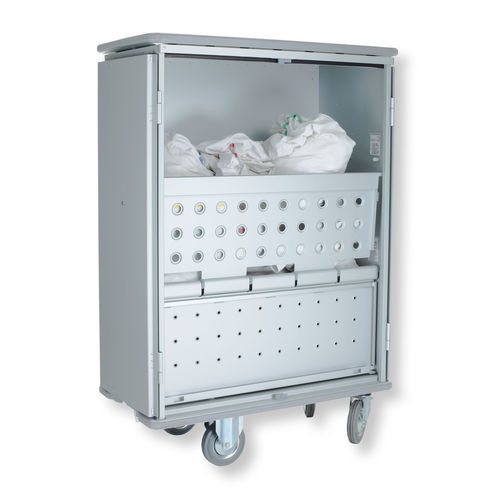

Body in AlMg3 light alloy sheet, anodized (10 micron). 2 hinged perforated shelves. Upper shelf can be folded toward the back. Lower shelf can be folded toward the front. Lower shelf is made in 2 parts as an anti-fall device in vertical position. 3 possible internal configurations of shelves: -loading and transport of clean linen -loading and unloading of bags -dirty linen transport Double wing door built with 2,5 mm bent sheet and welded reinforcements on top and bottom, opening at 270° with stopping magnet for resting position. Door fastening by one vertical thumb-latch hooking on top and bottom. The truck is equipped with an EPDM gasket on top to grant protection of contents from water and dust. One push-handle on a short side. Strong non-twisting bottom iron frame with epoxy finishing (80 micron). Non-marking grey rubber buffer on bottom and on top. 2 fixed and 2 swivelling wheels with non-marking rubber ring and zinc-plated housings. Shelf carrying capacity: 80 kg /each Bottom carrying capacity: 120 kg Light between shelves: lower space 479 mm middle space 465 mm upper space 397 mm Internal dimensions 1130 x 550 x 1420 mm h External dimensions 1230 x 630 x 1785 mm h Capacity 883 l Weight 76,50 kg Wheels diameter 200 mm
