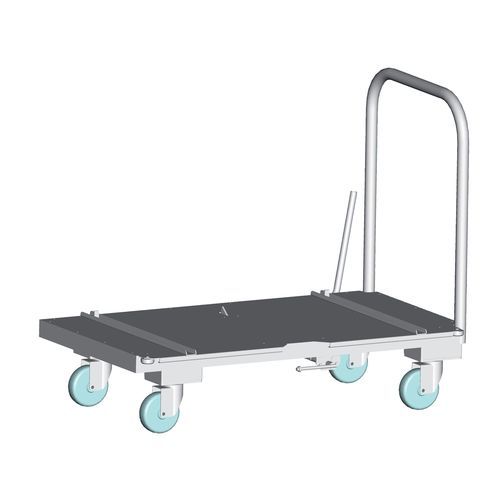

Made in AlMg3 light alloy sheet and profiles, anodized (10 micron). Equipped with 2 stainless steel rails on bottom, suitable for 1 single section shuttle (5020 and 5025). Hooking device to cupboard (5000) or platform (5030) made in stainless steel with an ergonomic leverage. When activated the transport trolley is fastened to its corresponding interface and the shuttle is released. Push-handle on a short side. 4 swivelling wheels dia. 125 mm with polyurethane ring and stainless steel housings.
External dimensions 1120 x 705 x 955 mm h
Capacity 1 ISO-NORM 2-section shuttle or 1 DIN-NORM 3-section shuttle
Weight 22 kg
