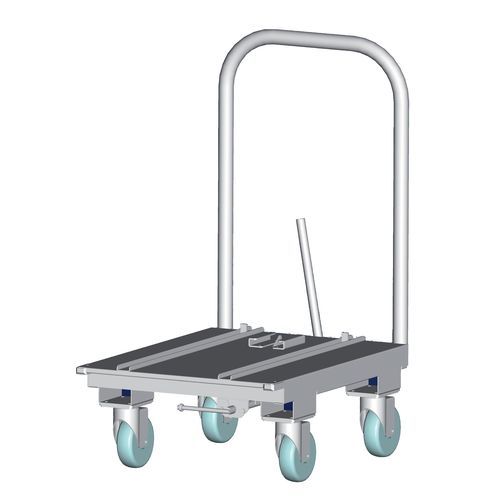

Transport trolley SY 5010/1

for general purposesmedicalanodized aluminum

Made in AlMg3 light alloy sheet and profiles, anodized (10 micron). Equipped with 2 stainless steel rails on bottom, suitable for 1 single section shuttle (5020 and 5025). Hooking device to cupboard (5000) or platform (5030) made in stainless steel with an ergonomic leverage. When activated the transport trolley is fastened to its corresponding interface and the shuttle is released. Push-handle on a short side. 4 swivelling wheels dia. 125 mm with polyurethane ring and stainless steel housings. External dimensions 695 x 510 x 955 mm h Capacity 1 ISO-NORM single-section shuttle or 1 DIN-NORM singlesection shuttle Weight 22 kg
