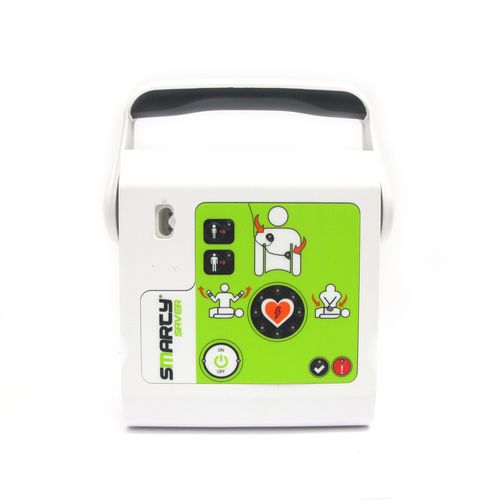

Automatic external defibrillator SMARTY SAVER PLUS

semi-automaticfor home usepublic access

Thanks to a wireless Q-CPR external module linked to the device by Bluetooth and a 8 LEDs bar located on the keyboard along with the acoustic metronome and prompts, the operator can count on a real-time support for the correct execution of frequency and depth during the CPR operation (according to the International Guidelines). Technical specifications Analysis time:IEC/EN 60601-2-4 from 4 to 15 seconds Impedance range:20-200 Ohms Sensitivity:97% (IEC/EN 60601-2-4) Specificity:99% (IEC/EN 60601-2-4) Light indicators: - –Device status: 2 LEDs red/green – PADs placement: 2 red LEDs – Do not touch the patient: 2 red LEDs – Touch the patient: 1green LED – Adult patient: 1green LED – Paediatric patient: 1green LED – ON/OFF button: 2 green LEDs – Shock button: 8 red LEDs – CPR Quality feedback 8 LED bar: 2 red + 2 orange + 2 yellow + 2 green – Q-CPR module connection: 1 green LED EVENT RECORDING - Optional external memory:Micro uSD/SDHC card up to 32GB Stored data:“AED1LOG.txt”: text file with detailed report of the activities of self-test and power-ups “AEDFILE.aed”:ECG trace, rescue events, voices and background audio “AEDFILE.aed”review:Through data manager software “SaverViewExpress“ DEFIBRILLATION PADS - Type:Code SMT-C2001: Disposable, universal, pre-gelled, preconnected Shelf-life:4 years, as indicated on the packaging Type:Code SMT-C2002: Disposable, universal, pre-gelled, preconnected, Face-to-Face Shelf-life:24 months, as indicated on the packaging Dimensions:Total surface 136cm²; active surface 94cm²; 120cm cable length (external to the packaging)
