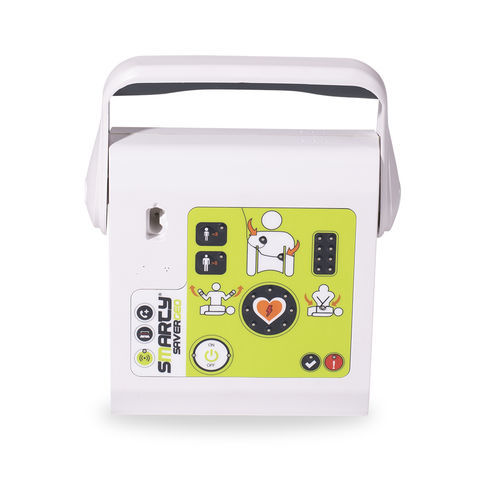

Automatic external defibrillator SMARTY SAVER GEO

semi-automaticfor public spacefor home use

The integrated SIM card allows the device to transmit and receive data through the mobile phone network. The battery power supply dedicated to geo location module is autonomous and additional to the one dedicated to the basic functionality as defibrillator. All the info is sent by the device to the AMISAVERCLOUD PLATFORM, which is conceived to monitor and control multiple AEDs by remote through any web browser and internet connected device. Among the info and data sent to the platform, the AED can transmit the ECG in real time hence a professional operator will be able to view and examine the ECG by remote on the AMISAVERCLOUD PLATFORM. Finally through the dedicated VIVO BUTTON located on the keyboard the operator will be free to call the local EMS straight away directly from the AED! Technical specifications Charging time from shock alert:IEC/EN 60601-2-4 ≤ 9 sec with shock at 150J ≤ 12 sec with shock at 200J Analysis time:IEC/EN 60601-2-4 from 4 to 15 seconds Impedance range:20-200 Ohms Sensitivity:97% (IEC/EN 60601-2-4) Specificity:99% (IEC/EN 60601-2-4) Light indicators:– Device status: 2 LEDs red/green – PADs placement: 2 red LEDs – Do not touch the patient: 2 red LEDs – Touch the patient: 1 green LED – Adult patient: 1 green LED – Paediatric patient: 1 green LED – ON/OFF button: 2 green LEDs – Shock button: 8 red LEDs – CPR Quality feedback 8 LED bar: 2 red + 2 orange + 2 yellow +2 green – Q-CPR module connection: 1 green fixed LED – ECG streaming: 1 green blinking LED EVENT RECORDING - Optional external memory:Micro uSD/SDHC card up to 32GB
