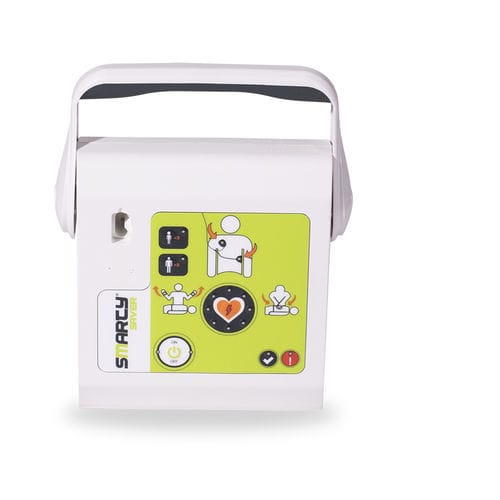

Automated external defibrillator SMARTY SAVER

semi-automaticfor home usepublic access

The Semi-Automatic model, after checking the patient’s ECG, if a shockable rhythm is detected, then the device automatically starts charging the reservoir capacitor. Once ready for the shock, the operator will need to push the shock button to defibrillate. Then the CPR phase starts through voice message and metronome. The Fully Automatic model, once ready for the shock will automatically deliver the defibrillation shock after 5 second according to the vocal prompt. Technical specifications DEFIBRILLATOR Charging time from shock alert: - IEC/EN 60601-2-4 ≤ 9 sec with shock at 150J ≤ 12 sec with shock at 200J Analysis time: IEC/EN 60601-2-4 from 4 to 15 seconds Impedance range: 20-200 Ohms Sensitivity: 97% (IEC/EN 60601-2-4) Specificity: 99% (IEC/EN 60601-2-4) Light indicators: - – Device status: 2 LEDs red /green – PADs placement: 2 red LEDs – Do not touch the patient: 2 red LEDs – Touch the patient: 1 green LED – Adult patient: 1 green LED – Paediatric patient: 1 green LED – ON/OFF button : 2 green LEDs – Shock button: 8 red LEDs Upgradeable: Through a USB cable or external memory card EVENT RECORDING - Optional external memory: - Micro uSD/SDHC card up to 32GB Stored data:“AED1LOG.txt”: text file with detailed report of the activities of self-test and power-ups “AEDFILE.aed”:ECG trace, rescue “AEDFILE.aed”review:Through data manager software “SaverViewExpress“ DEFIBRILLATION PADS - Type:Code SMT-C2001: Disposable, universal, pre-gelled, preconnected Shelf-life:4 years, as indicated on the packaging Type:Code SMT-C2002: Disposable, universal, pre-gelled, preconnected, Face-to-Face Shelf-life:24 months, as indicated on the packaging
