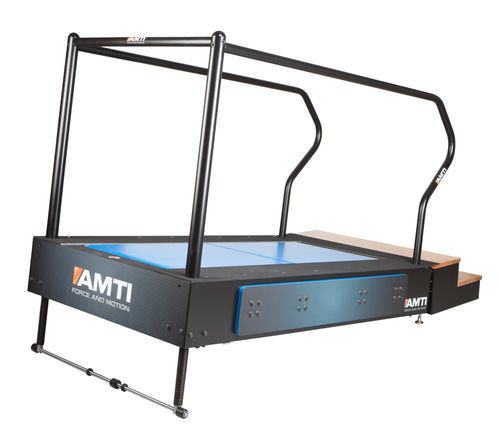

Treadmill with incline Tandem Treadmill

with handrails

Overview
AMTI’s tandem treadmill is a force plate–instrumented treadmill with an innovative front-to-back split belt design that preserves a continuous walking surface while delivering bilateral force measurements for walking and running. Precision motor control and included software allow controlled belt speed, direction and inclination up to 25% grade and speeds up to 20 km/h. The unit ships fully assembled and integrates two six-axis force plates for synchronized bilateral data collection.

Key Features

• Inclination up to 25% grade
• Reversible belts for uphill and downhill testing
• Two independent six-axis force platforms with 8800 N vertical capacity each
• Adjustable speed up to 20 km/h
• Ships fully assembled with all software pre-loaded on an AMTI-supplied PC
• Simple USB integration with leading motion capture systems
• AMTI StrideWorks software converts front/back forces to left/right limb forces in real time and can stream data via USB

Usage and Benefits
The treadmill supports gait and running studies under level, uphill and downhill conditions. Its reinforced frame and integrated six-axis plates provide high-fidelity force data suitable for long-duration fatigue or steady-state experiments, as well as rapid multiple-footfall collection for efficient protocol execution in clinical and research facilities.

Installation Options

• Above Ground: Sits on top of the floor; ships with stairs for access; optional caster wheels enable moving the unit in/out of capture volume if required.
• In-Floor (Pit): Installs within a recessed concrete pit or raised access floor; belt surfaces flush with surrounding floor; ships with mounting rails for anchoring.

Integrated Force Plate Specifications
Vertical force plate capacity: 8800 N
Horizontal force plate capacity: 4500 N
Installed force plate natural frequency: 300 Hz (Fx, Fy)
Linearity: ±0.2% full scale output
Hysteresis: ±0.2% full scale output

Overall Treadmill Specifications
Working surface of each belt: 75 (L) x 61 (W) cm
Total working surface: 150 (L) x 61 (W) cm
Non-inclined belt height: 30 cm
Overall dimensions (including handrails): 203 (L) x 114 (W) x 128 (H) cm
Belt speed: 0–20 km/h
Treadmill inclination angle: 0–25% grade (14°)
Side handrails: Removable
Front upright handrail supports: Two posts, 91 cm high and 91 cm apart; removable (non-incline version only)
Weight: 400 kg
Structure natural frequency: 120 Hz

Power Requirements
208 VAC, 3‑phase, WYE connected, 20‑Amp

Technical specifications

• Product type: Force plate-instrumented treadmill with front-to-back split belt
• Belt configuration: Front-to-back split belts with 3 mm clearance and synchronized speeds
• Force measurement: Two integrated six-axis force plates (bilateral force data)
• Force plate vertical capacity: 8800 N
• Force plate horizontal capacity: 4500 N
• Force plate installed natural frequency: 300 Hz (Fx, Fy)
• Working surface (each belt): 75 x 61 cm; total working surface: 150 x 61 cm
• Belt speed range: 0–20 km/h
• Inclination: 0–25% grade (14°)
• Non-inclined belt height: 30 cm
• Overall dimensions (with handrails): 203 x 114 x 128 cm
• Weight: 400 kg
• Structure natural frequency: 120 Hz
• Linearity / Hysteresis: ±0.2% full scale output
• Power: 208 VAC, 3‑phase, WYE connected, 20‑Amp
• Ships fully assembled; software pre-loaded on AMTI-supplied PC; USB integration with motion capture systems
