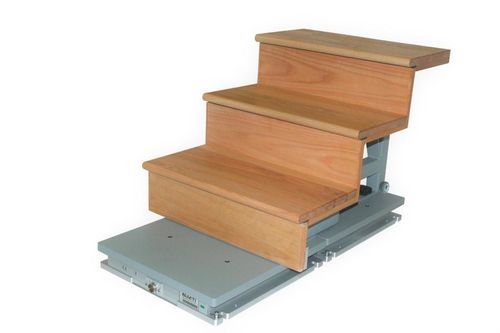

Straight rehabilitation staircase

Overview AMTI removable instrumented stairs isolate the forces and moments produced during four consecutive steps and route those loads to one of two underlying solid-top force plates. The stairway uses a nesting platform design so alternating steps transfer to alternate force plates, preventing two consecutive steps from transmitting to the same plate.

Key Features Solid-top force plates are available in standard sizes (40×60 cm or 46×51 cm) and the stairway attaches to threaded inserts on the top surfaces of these platforms. The standard stair design provides 23.8" step width with 7" rise and 10.4" run per step.

Versatile Force Plates When not required for a protocol, the stairs can be removed via through-top mounting bolts, allowing the embedded force plates to be used independently for balance, gait, running, jumping and other biomechanics applications.

System Information Use AMTI instrumented stairs with the solid-top versions of the 40×60 cm or 46×51 cm force plates. Note: force plates and stairs are sold separately.

Models and Sizes Available series: BMS, HPS, MMS
Corresponding force plate sizes (cm): 46×51, 40×60
*Solid-top force plates only.

Technical Drawings Assembly and technical drawings are available for the 400×600 and 464×508 force plate + stairs assemblies.

Technical Specifications

• Function: isolates forces and moments generated during four consecutive steps and routes loads to two underlying force plates
• Nesting design: alternates which force plate each step transmits to so no two consecutive steps transmit to the same plate
• Step dimensions (standard design): 23.8" step width; 7" rise; 10.4" run
• Attachment: stairway attaches to threaded inserts on solid-top force plates via through-top mounting bolts
• Compatible force plate sizes: 40×60 cm and 46×51 cm (solid top only)
• Available force plate series: BMS, HPS, MMS
• Force plates and stairs sold separately
• Minimum quantity for plates in end-to-end configuration: 2 (required for plate use with stairs)
