Gait evaluation software NetForce

rehabilitationposturographyphysiotherapy

Product overview
NetForce is AMTI's data acquisition software for collecting signals from multi-axis force plates and force sensors. Supplied with all AMTI transducers, it saves acquired data to binary .BSF files (compatible with AMTI BioAnalysis) and/or exports plain text for third-party analysis.

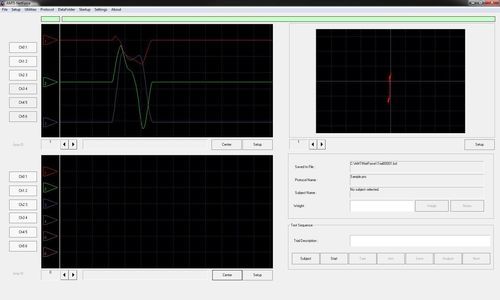

Real-time display & triggering
NetForce provides continuous real-time visualization of transducer outputs; changes are displayed instantly as force or load is applied. Displayed data can be captured using triggering mechanisms:

• Channel level
• Elapsed time
• Key stroke
• External input

Once a trigger event is detected, NetForce records the event with configurable pre- and post-trigger capture expressed as a percentage of the total sample duration.

Performance
Acquire, inspect and plot data at sampling rates up to 2000 Hz. The interface supports straightforward trial setup and efficient data acquisition workflows suitable for clinical and research environments.

Data communications & compatible AMTI products
USB 2.0 plug & play (software configurable) — OPTIMA-SC; GEN-5; AccuSway-Optimized (ACS-O); AccuGait-Optimized (ACG-O); AccuPower-Optimized (ACP-O).
RS-232 (via serial-to-USB converter) — MSA-6; AccuSway (ACS); AccuGait (ACG); AccuPower (ACP); HE6x6.

Technical specifications

• Supported file formats: .BSF (binary) and plain text export
• Compatibility with AMTI BioAnalysis
• Real-time display of multi-axis transducer outputs
• Trigger modes: channel level, elapsed time, key stroke, external input
• Configurable pre- and post-trigger capture as percentage of sample duration
• Data acquisition rate: up to 2000 Hz
• Interfaces: USB 2.0 and RS-232 (via serial-to-USB converter)
• Included with all AMTI transducers
