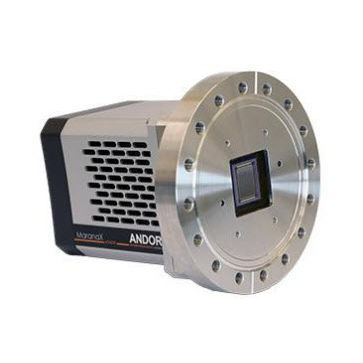

Microscope camera Marana-X

digitalCCDcooled

Andor’s portfolio of CCD, sCMOS and EMCCD cameras provide a wide range of high sensitivity, high dynamic range and fast detection solutions for table-top laboratory and beamline experiments. These detectors benefit especially applications in the field of EUV, X-ray, neutron or electron detection for material science, plasma studies, bio-samples analysis or beam/source characterisation. NEW Marana-X – High Speed, Direct X-ray Detection Back-illuminated sCMOS 4.2 Megapixels, 6.5 µm pixel size, 74 fps (full array) 95% QE and low noise vacuum cooled Ideal for X-ray water window tomographic and in-situ imaging & EUV spectroscopy Marana-X is Andor’s ground breaking sCMOS pLatform tailored to direct EUV and soft X-ray applications. Hand crafted to deliver market leading performance and versatility Marana-X reads out a 4.2 Megapixel high resolution array in Less than 50 milliseconds while maintaining very Low read noise; hundreds of times faster than simiLar résolution CCD detectors. The new Marana-X sCMOS boasts superior quantum efïïciency in the EUV-1 keVenergy range compared to existing CCDs. The excellent quantum effïciency of the Marana-X compléments its high end scientifïc CMOS technology allowing the minimisation of experimental time and maximum data throughput with a rapid 74 fps full frame. Additionally, the sensor quantum effïciency and life time of the Marana-X has been fully characterised in a recent scientifïc nublication bv Harada and coworkers
