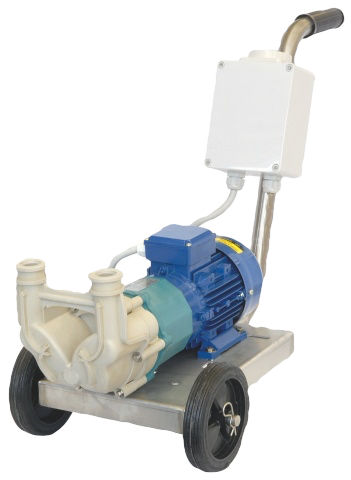

Suction pump ELK G1 TMA
magnetic-driveelectriccentrifugal

suction pump
suction pump
suction pump
suction pump
Add to favorites
Compare this product


Characteristics

Applications
suction
Operation
magnetic-drive, electric
Technology
centrifugal
Fluid type
for liquids
Configuration
compact, close-coupled
Flow

Min.: 0 m³/h
(0 ft³/h)

Max.: 50 m³/h
(1,765.73334 ft³/h)

Power

0.55 kW, 7.5 kW
(0.75 hp, 10.2 hp)

Description

Our self-priming pumps boast the following important features: pumping liquids with a specific gravity without reducing performance by installing electric motors of increased power; the use of E-CTFE for magnetic versions offers an unparalleled chemical resistance when compared to other injection moulded polymers; the close-coupled versions have standardised electric motors. 3 versions are available: Hippo (ZMA), Elk (TMA G1) and Rhino (TMA G2) Capacity: up to 50 m3/h Construction: close-coupled Motor powers: kW 0,55 : 7,5 Wetted parts: PP, E-CTFE, U-PVC, PDVF Self-priming The self-priming process allows to carry the pumped fluid by aspiring air and then by collecting the liquid. Thanks to Argal's specific self-priming construction, our pumps are able to operate with higher suction length and shorter priming times than traditional self-priming pumps.
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
