liquid pump / magnetic-drive / compact
E-CTFE Halar® Route

Add to MyMedicalExpo favorites
Compare this product

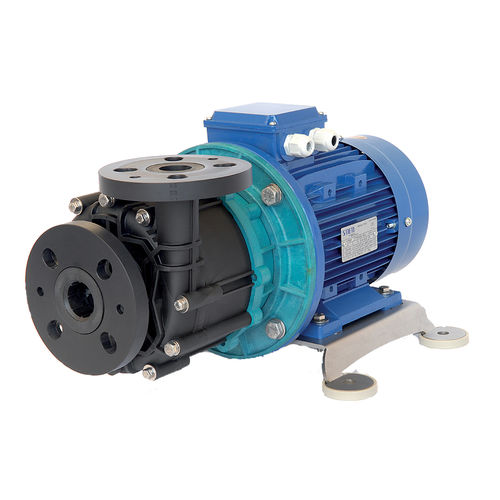

liquid pump / magnetic-drive / compact liquid pump / magnetic-drive / compact - E-CTFE Halar® Route


  • Fluid type:

    for liquids

  • Operational mode:


  • Other characteristics:


  • Flow:

    Min.: 0 m³/h (0 ft³/h)

    Max.: 50 m³/h (1,765.7333 ft³/h)


This series of thermoplastic or fluorinated polymers pumps is available in both magnetic drive setting and mechanical seal for pumping various chemical liquids even if laden with impurities and suspended solids. Mainly by the quantity and quality of these, you can choose the setting that better suits you. A patented system for dry running without damage is available for the magnetic drive version.

Capacity: up to 50m3/h
Construction: Close coupled
Motor powers: kW 0,25 ÷ 11
Wetted parts: PP or E-CTFE

Self-alignment system
The mag-drive version features the patented "bi-directional axial self-alignment system" which allows, for the "R" configuration, to run dry. The combination of adequate materials of the driving system of the impeller with a specific magnetic field wholly eliminates all frontal frictions that are the cause of breakage when dry running. It is possible to couple standard motors without disassembling the pump.
