liquid pump / centrifugal / close-coupled

Add to MyMedicalExpo favorites
Compare this product

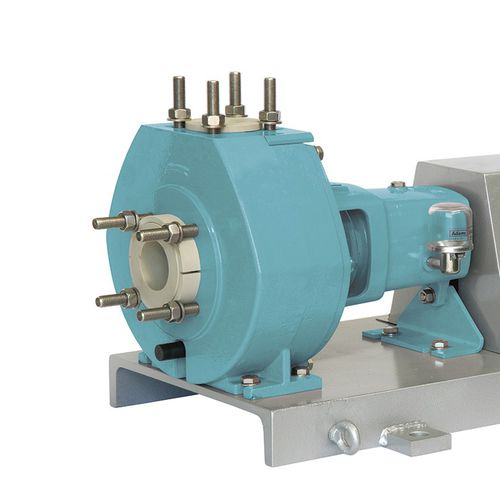

liquid pump / centrifugal / close-coupled liquid pump / centrifugal / close-coupled - ZGE


  • Fluid type:

    for liquids

  • Operational mode:


  • Other characteristics:


  • Flow:

    Min.: 0 m³/h (0 ft³/h)

    Max.: 1,700 m³/h (60,034.9334 ft³/h)

  • Power:

    0.55 kW (0.75 hp)


Wide and comprehensive range of process chemical centrifugal pumps made of pure thermoplastics and fluoropolymers, they are sized according to ISO 2838 and can be supplied bare shaft or complete with base plate and coupling with a spacer (for back-pull out operation). The pump bodies are extremely rugged, machined from solid thermoplastics with an outer metal casing.

Capacity: up to 1700 m3/h
Construction: long or close coupled
Motor powers: kW 0,55 ÷ 200
Wetted parts: PP, U-PVC, PVDF, UHMW-PE

ZGE pumps can operate into heavy applications such as chemical industry.

They can drag liquids with suspended solids or moderately abrasive thanks to their construction in polymers and the different types of mechanical seal available. The parts in contact with the pumped liquid are totally resistant to chemical agents with low or high temperatures.
