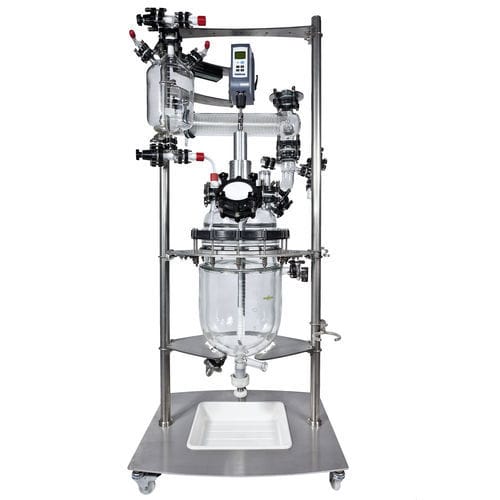

Membrane reactor 100 L PLUS PILOT

laboratorystainless steeljacketed

The perfect solution to your process chemistry needs, the PILOT PLUS range covers vessels sizes from 50 L up to 100 L. Asynt can offer a complete reactor system incorporated into a unique open air, auto-centre framework with a wide range of accessories and customisation available to suit your kilo lab needs. ATEX version available. Technical Specifications The 100 L PLUS PILOT includes: n°1 DISMOUNTABLE JACKETED VESSEL DN450/400 100L, DISCHARGE DN50 n°1 GLASS/PTFE VALVE DN50 WITH NO DEAD VOLUME n°1 COVER DN300 7 NOZZLES WITH: – CENTRAL DN25 FOR STIRRING, – DN80 PTFE NOZZLE FOR SOLIDS, – DN40 WITH GLASS THERMOMETER POCKET FOR PT100, – DN40 WITH WELL FOR PH, – DN40 FREE NOZZLE – DN25 WITH DIP PIPE AND ADAPTER FOR LIQUIDS, – DN50 FOR VAPOURS n°1 BOROSILICATE GLASS 3.3 REDUCED BEND DN100/50 n°1 REFLUX SEPARATOR DN100 n°1 GLASS THERMOMETER POCKET FOR PT100 n°1 GLASS BEND 90° DN15 n°2 5L GRADUATED FEED AND RECEIVING VESSEL n°1 HORIZONTAL COIL HEAT EXCHANGER 1,5MQ INC5° DN80 n°1 RUPTURE DISK GRAPHITE/PFA DN50 n°1 HIGH TORQUE-HIGH SPEED OVERHEAD STIRRER A SPINDLE MOTOR B LANTERN WITH MECHANICAL SEAL GRAPHITE/PTFE C STAINLESS STEEL STIRRING SHAFT/PTFE COATED n°1 STAINLESS STEEL FRAME FOR REACTOR WITH COVER DN300 Add to quote Request info
