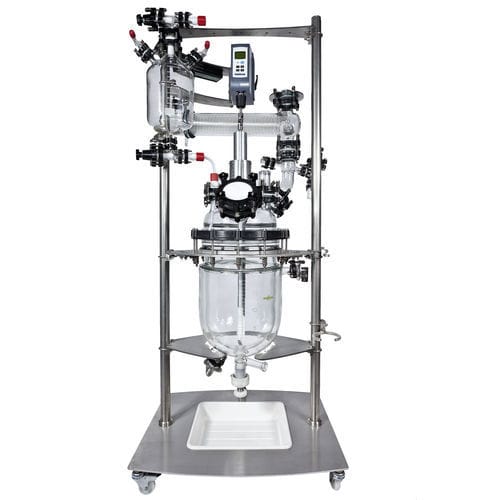

Membrane reactor 60 L PLUS PILOT

laboratoryglassjacketed

The perfect solution to your process chemistry needs, the PILOT PLUS range covers vessels sizes from 50 L up to 100 L including the 60 L PLUS PILOT Reactor. Asynt can offer a complete reactor system incorporated into a unique open air, auto-centre framework with a wide range of accessories and customisation available to suit your kilo lab needs. ATEX version available. Technical Specifications The 60 L PLUS PILOT includes: DISMOUNTABLE JACKETED VESSEL DN450/400 60L DISCHARGE DN50 GLASS/PTFE VALVE DN50 WITH NO DEAD VOLUME COVER DN300 7 NOZZLES WITH: – CENTRAL DN25 FOR STIRRING, – DN80 PTFE NOZZLE FOR SOLIDS, – DN40 WITH GLASS THERMOMETER POCKET FOR PT100, – DN40 WITH WELL FOR PH, – DN40 FREE NOZZLE – DN25 WITH DIP PIPE AND ADAPTER FOR LIQUIDS, – DN50 FOR VAPOURS BOROSILICATE GLASS 3.3 REDUCED BEND DN100/50 REFLUX SEPARATOR DN100 GLASS THERMOMETER POCKET FOR PT100 GLASS BEND 90° DN15 n° 2 5L GRADUATED FEED AND RECEIVING VESSEL HORIZONTAL COIL HEAT EXCHANGER 1.5MQ DN80 RUPTURE DISK GRAPHITE/PFA DN50 HIGH TORQUE-HIGH SPEED OVERHEAD STIRRER A SPINDLE MOTOR B LANTERN WITH MECHANICAL SEAL GRAPHITE/PTFE C STAINLESS STEEL STIRRING SHAFT/PTFE COATED STAINLESS STEEL FRAME FOR REACTOR WITH COVER DN300
