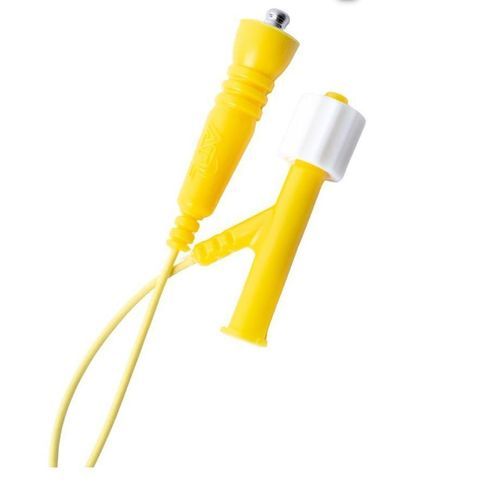

Medical ECG cable FasTip

monitoring

Overview
FasTip is the universal connection cable for verifying correct positioning of central venous catheters using the intracavitary ECG method. The cable transfers the biological signal to the electrocardiograph. Correct tip placement near the cavo-atrial junction reduces the risk of arrhythmias, catheter malfunction, pericatheter fibrous sheath formation and PICC-related central venous thrombosis.

Operation
When connected to an ECG (e.g., Magellano or other compatible systems), FasTip detects morphological and amplitude changes of the P wave. The catheter filled with saline acts as the exploring electrode via its distal tip. The P wave, recorded dynamically, increases progressively when approaching the right atrium, becomes biphasic within the atrium and turns fully negative once the tip has passed beyond the atrium.

Main features

• Sterile disposable ECG cable
• Universal connection for catheter tip position verification
• Transfer of biological signal to the electrocardiograph
• Compatible with intracavitary ECG systems (e.g., Magellano) and other ECG devices
• Uses the saline-filled catheter as the exploring electrode
• Supports tip location method based on P-wave modifications

Clinical benefits

• Reduced risk of positioning-related arrhythmias
• Lower likelihood of catheter malfunction
• Reduced formation of pericatheter fibrous sheaths
• Decreased risk of PICC-related central venous thrombosis

Technical specifications

• Type: sterile disposable ECG cable
• Function: universal connection for intracavitary recording via a saline-filled catheter
• Use: verification of correct positioning of central venous catheters (tip near the cavo-atrial junction)
• Signal: transfer of biological signal to the electrocardiograph for P-wave analysis
• Compatibility: designed for use with intracavitary ECG systems and other compatible electrocardiographs
