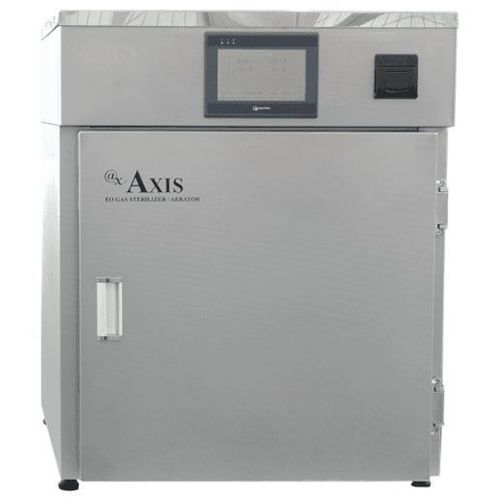

Medical sterilizer AX-200

hospitalfor sterilization servicesfor central sterilization supply units

Product Overview
The AX-200 is a 200‑liter ethylene oxide (EO) gas sterilizer designed for medical and invasive devices. It uses a kit-based gas diffusion process: items are placed in a sealed liner bag together with the EO gas cartridge, dosimeter and humidity chip for controlled sterilization.

Operation and Use
Place the sealed liner bag in the sterilizer and start the automatic cycle. The integrated 7" color touch screen displays all phases in real time (resistance, fan, vacuum, conditioning, sterilization, ventilation). In-bag humidity and temperature are monitored live via the mobile probe.

Monitoring and Safety
The chamber is maintained under permanent vacuum during all phases. Visual and audible alarms alert operators to faults. The system includes negative pressure operation, cabin pressure monitoring and a door-lock safety mechanism to protect users and sterile loads.

Modularity and Data Management
Modular loading allows two different bag groups to be processed separately and a new liner bag group can be added during an ongoing cycle. Cycle reports are stored in memory, printable via the built-in printer or exportable through USB 2.0 for traceability and validation.

Installation and Workflow Advantages
AX-200 requires only a standard 220 V grounded outlet and a 6 cm wall ventilation opening—no water, drainage or compressed air needed. Long instruments (e.g., catheters up to 220 cm) can be sterilized straight inside the liner bag, simplifying handling.

Product Features

• 200 L capacity with kit-based EO gas diffusion
• Permanent vacuum operation with negative pressure safety system
• 7" color touch screen with real-time phase display
• In-bag humidity and temperature monitoring via mobile probe (calibratable)
• Vacuum-type sealing with gasket pressure plate
• Sterilization and aeration in the same cabinet
• Ability to load two bag groups separately; add liner bag group during operation
• Built-in printer and USB 2.0 export for cycle reports
• 4‑hour short program and configurable preconditioning/sterilization/aeration times
• Permanent vacuum pipe congestion warning and cabin pressure monitoring
• Automatic door-lock system (no mechanical handle required)
• Floor heating system and stainless steel inner chamber
• MDR compliant; certifications include EN 61010-2-40, EN 61010-1, EN 60601-1-2 EMC, EN 60601-1, ISO 9001/13485
• Software compatible with EN 14937 for validation; suitable for invasive sterilization

Technical Specifications

• Capacity: 200 Liter
• Display: 7" Color Touch Screen
• Internal Dimensions (W×D×L): 62 × 60 × 55 cm
• External Dimensions (W×D×L): 70 × 69 × 84 cm
• Weight: 90 kg
• Power: 600 W
• Amperage: 3 A
• Voltage: 110–220 VAC
• Working Temperature: 30–59 °C
• Outer Material: Decorative Inox
• Inner Material: Stainless Steel
• Safety: Manual Door Lock
• Preconditioning: 0–9 Hours
• Sterilization: 1–9 Hours
• Aeration: 0–9 Hours
• Total Cycle Time: 1–27 Hours
• Liner Bag: 60 × 90 cm (supports long instruments up to 220 cm)
• EO Cartridge: ARQ-11 / ARQ-5 / AR-11
• Printer: Built-in
• Connection: USB 2.0
