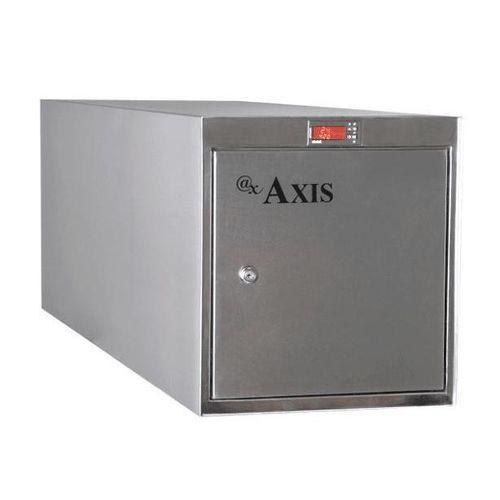

Sterilization service sterilizer AX-135

medicalethylene oxideEtO

Product Overview
Axis offers an EO gas diffusion sterilizer designed for heat- and moisture-sensitive medical devices. The AX-135 has a 135 L chamber and uses a liner bag system with an EO gas cartridge, dosimeter and humidity chip. The chamber is maintained under vacuum during conditioning, sterilization and aeration to ensure process integrity and operator safety. The color Dixell display provides visual and audible status and fault alerts.

Product Features

• Ethylene oxide (EO) diffusion sterilization for sensitive medical devices
• Vacuum-type sealing with gasket pressure plate
• Sterilization and aeration in a single cabinet
• Short program option: ~4 hours
• User-friendly, modular operation
• Low EO gas consumption
• Microcomputer control with Dixell color display and audible alarms
• No external drainage, water or compressed air required — easy installation
• MDR compliant; standards: EN 61010-2-40, EN 61010-1, EN 60601-1-2 EMC, EN 60601-1; ISO 9001 / ISO 13485 documented
• Software compatible with EN 14937 for validation
• Compatible with EO cartridges: ARQ-11, ARQ-5, AR-11

Technical Specifications
Capacity: 135 L
Display: Dixell controller
Internal dimensions (W×D×L): 35 × 110 × 35 cm
External dimensions (W×D×L): 37 × 122 × 41 cm
Weight: 41 kg
Power: 400 W
Voltage: 110–220 VAC
Operating temperature: 30–59 °C
Outer material: decorative inox
Inner material: stainless steel
Safety: manual door lock
Preconditioning: 0–9 hours
Sterilization time range: 1–9 hours
Aeration time range: 0–9 hours
Total cycle time: 1–27 hours
Liner bag size: 47 × 130 cm
Compatible EO cartridges: ARQ-11 / ARQ-5 / AR-11

Product Description
Items to be sterilized are placed in the liner bag together with the EO gas cartridge, dosimeter and humidity chip, then sealed. The integrated vacuum system maintains negative pressure throughout all stages to protect operators and ensure repeatable conditions. The Dixell color monitor displays stage-by-stage status (resistance, fan, vacuum, conditioning, sterilization, aeration) with visual and audible alerts in case of anomalies. EO sterilization is suitable for many polymeric and heat- or moisture-sensitive medical devices that cannot undergo steam sterilization.

Characteristics / Technical Specifications

• Capacity: 135 L
• Display: Dixell controller
• Internal dimensions (W×D×L): 35 × 110 × 35 cm
• External dimensions (W×D×L): 37 × 122 × 41 cm
• Weight: 41 kg
• Power: 400 W
• Voltage: 110–220 VAC
• Operating temperature: 30–59 °C
• Outer material: decorative inox
• Inner material: stainless steel
• Safety: manual door lock
• Preconditioning: 0–9 hours
• Sterilization time range: 1–9 hours
• Aeration time range: 0–9 hours
• Total cycle time: 1–27 hours
• Liner bag size: 47 × 130 cm
• Compatible EO cartridges: ARQ-11 / ARQ-5 / AR-11
