Raman spectrometer Exemplar Plus

opticalfluorescenceCzerny-Turner

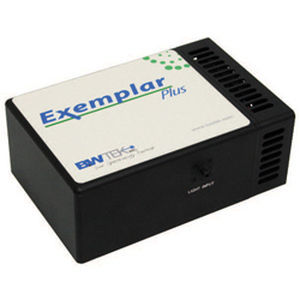

The Exemplar® Plus is a high performance smart spectrometer utilizing a low stray light unfolded Czerny-Turner spectrograph. It features a highly sensitive TE Cooled back-thinned (BT) CCD detector which is linearly summed for high dynamic range. Its long focal length, coupled with a high quantum efficiency detector, provides superior data quality over the entire 190-1100nm spectral range. The Exemplar Plus features a high signal to noise ratio, making it ideal for low light level applications, and also features a built-in shutter allowing for dark scan measurements, even while illuminated. As a member of the Exemplar product line, it features on board data processing and USB 3.0 communication. The Exemplar product line is also optimized for multi-channel operation featuring ultra-low trigger delay and gate jitter. Applications: Low Light Level UV to NIR Spectroscopy Raman and Fluorescence Spectroscopy On-line Process Monitoring LCD Display Measurement Gas and Water Analysis LED Characterization Features SMART: On-board processing including averaging, smoothing, and dark compensation SPEED: Acquires and transfers more than 140 spectra per second at an integration time of 6.3ms SYNCHRONOUS: Supports up to 32 devices with ultra-low trigger delay (95ns) & gate jitter (+/- 20ns) Specifications Power Input - 5V DC @ 6A (Maximum at Startup) 5V DC @ 2.5A (Typical at Normal Operation) Detector Type - Back-thinned CCD Array Detector Pixel Format - 2048 Effective Detector Elements Effective Pixel Size - 14μm x ~0.9mm Spectrograph f/# - 3.6 Spectrograph Optical Layout - Standard Czerny-Turner Dynamic Range - 50,000 (Typical) Digitizer Resolution - 16-bit or 65,535:1
