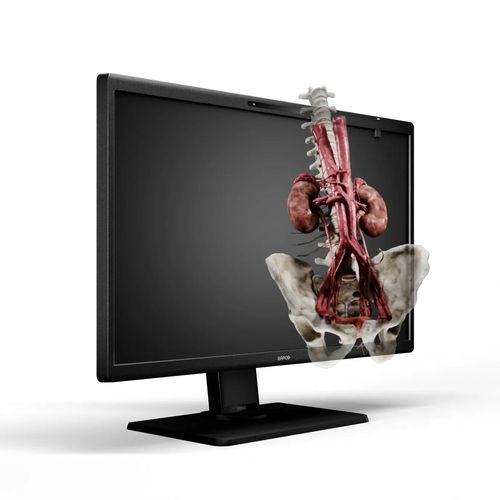

Medical display Eonis 3D

surgical8"LED

Short description
Glasses-free medical 3D display

Key features

• Autostereoscopic 3D with advanced eye-tracking & lenticular lens projection
• 4K resolution on standard-size 27” screen (8MP, 3840 x 2160 @ 60 Hz)
• Effortless switching between 2D & 3D for any task
• DICOM-compatible, Class 1 medical-grade display
• Remote QA management tools and advanced front-sensor calibration (integration with QAWeb Enterprise)

All-in-one versatility
Eonis 3D comes in a comfortable, standard 27” size – suitable for desk use. Without special eyewear, it renders complex anatomical structures with true depth for intuitive interpretation of pathologies.

Remote QA & calibration
Class 1 medical device that integrates with PACS and imaging platforms. Advanced calibration through a front consistency sensor and remote QA management maintains consistent image quality across the display's lifespan.

Medical-grade reliability & benefits
Transformative visualization aimed at improving patient opt-in rates, enhancing surgical preparation, and accelerating learning curves for residents and students.

Highlights / icons

• 8MP (8 million pixels)
• 27" screen
• Glasses-free 3D
• Color display (LED technology)
• QAWeb compatibility
• Front consistency sensor for consistency
• Wide viewing angle
• 3-year warranty

Caractéristiques / spécifications techniques

• Screen technology: IPS
• Active screen size (diagonal): 684 mm (26.96")
• Active screen size (H x V): 597 x 336 mm (23.49 x 13.22")
• Aspect ratio (H:V): 16:9
• Resolution: 8MP (3840 x 2160 pixels @ 60 Hz)
• Pixel pitch: 0.1554 mm
• Color imaging: Yes
• Gray imaging: Yes
• Bit depth: 30 bit
• Viewing angle (H, V): 178°
• Pathology Setting: Yes
• Color gamut NTSC: 82%
• Color gamut sRGB: 99%
• sRGB Delta E2000 (typical): Average < 3, Max < 5
• Ambient light presets: Yes, reading room selection
• Front sensor: Yes, Front Consistency Sensor
• Maximum luminance (panel typical): 330 cd/m²
• DICOM calibrated luminance: 250 cd/m²
• Contrast ratio (panel typical): 1000:1
• Response time ((Tr + Tf)/2) (typical): 14 ms
• Housing color: Black (RAL 9004) / White (RAL 9003)
• Video input signals: 2x DisplayPort 1.4; 1x USB-C 3.2 (DisplayPort Alt Mode)
• Video output signals: 1x DisplayPort 1.4 (MST)
• USB ports: Upstream: 2x USB-B 2.0; 1x USB-C 3.2 (DisplayPort Alt Mode, Power Delivery up to 100W). Downstream: 2x USB-A 2.0; 1x USB-C 2.0 (side of the display, Power Delivery up to 7.5W)
• LAN/RJ45 ports: 1x 1GbE
• Power rating: 100-240 Vac, 50/60 Hz, 2.5-0.9 A; USB-C output: 5VDC 3A, 9VDC 5A, 15VDC 5A, 20V 5A; USB-C output (side): 5VDC 1.5A
• Power requirements: This device shall only be powered by the medical approved power supply of Adapter Tech., type ATM200T-P240: Input: 100-240 Vac, 50-60 Hz, 2.5-0.9 A; Output: 24 Vdc, 8.3 A
• Power consumption: 35 W (nominal); < 0.5 W (hibernate); < 0.3 W (switched off)
• Dimensions with stand (W x H x D): Landscape: 624 x 479~579 x 225 mm
• Dimensions w/o stand (W x H x D): Landscape: 624 x 386 x 66 mm
• Dimensions packaged (W x H x D): 755 x 285 x 570 mm
• Net weight with stand: 10.6 kg
• Net weight w/o stand: 7.6 kg
• Net weight packaged: 15 kg (without optional accessories)
• Tilt: -5° to +25°
• Swivel: -30° to +30°
• Pivot: N/A
• Height adjustment range: 100 mm
• Mounting standard: VESA (100 mm)
• Screen protection: N/A
• Recommended modalities: All digital images, except digital mammography
• Certifications: CE (Medical Device); FDA Class I 510(k) exempt; CCC (China); KC (Korea); INMETRO (Brazil); BIS (India); UKCA (UK). Safety specific: IEC 62368-1:2018; EN IEC 62368-1:2020+A11:2020; IEC 60601-1:2005+A1:2012+A2:2020; EN 60601-1:2006+A1:2013+A12:2014+A2:2021; AAMI ES 60601-1:2005+A1:2012+A2:2021; CAN/CSA C22.2 No. 60601-1:2014 (Reaffirmed 2022). EMI specific: IEC 60601-1-2:2014+A1:2020 (Ed.4.1); EN 60601-1-2:2015+A1:2021 (Ed.4.1); FCC part 15 Class B; ICES-001 Level B; VCCI (Japan). Environmental: EU RoHS, China RoHS, REACH, Canada Health, WEEE, Packaging Directive
• Supplied accessories: User Guide; Quick Install Sheet; Documentation disc; Video cables; Mains cables; USB cable
• QA software: QAWeb Enterprise
• Warranty: 3 years
• Operating temperature: 0 °C to 35 °C (20 °C to 30 °C within specs)
• Storage temperature: -20 °C to +60 °C
• Operating humidity: 20 % to 80 % (non-condensing)
• Storage humidity: 10 % to 85 % (non-condensing)
• Operating pressure: 70 kPa
• Storage pressure: 50 to 106 kPa
