Medical display Nio Color

medical imagingdiagnosticradiology

Short description
Medical-grade diagnostic display designed for radiology reading and clinical collaboration across hospital and remote settings.

Overview

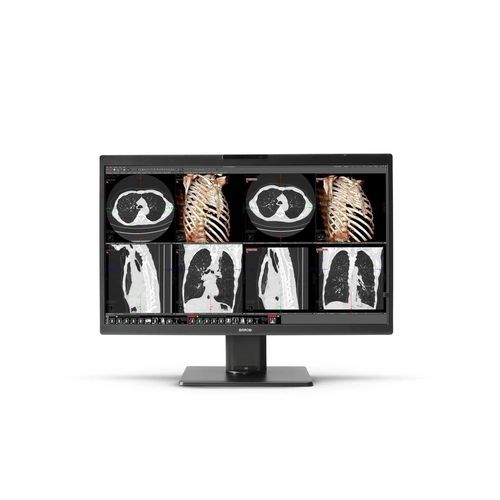

The Nio Color 8MP (MDNC‑8132) is a 32‑inch 8MP IPS display for radiology image interpretation. It delivers high-resolution color and grayscale imaging with integrated collaboration and QA features to support multi-workstation setups, tele-reading and clinical review.

Key features

• 8MP (3840 x 2160) resolution on a 32‑inch IPS panel for multi-image layouts and detailed visualization
• SteadyGray for stable and consistent grayscale rendering
• SteadyColor for accurate color reproduction when used with MXRT Display Controller and QAWeb Enterprise
• I‑Guard front sensor for long‑term stability of calibration and performance
• Uniform Luminance Technology (ULT) for screen-wide luminance uniformity correction
• Ambient Light Compensation with reading-room presets
• RapidFrame for sharp rendering of cine and scrolling images

Integrated multimedia & collaboration

• Built-in camera, speakers and microphone to support virtual collaboration and tele‑reading workflows
• Multi-Display Confer for advanced screen sharing across workstations
• KVM functionality to switch between multiple connected workstations
• Daisy‑chaining (DisplayPort MST) to simplify multi-monitor setups

Management, QA and reliability
Supports automated and remote quality assurance via QAWeb Enterprise to ensure consistent performance over the product lifecycle. I‑Guard and QA software enable predictable DICOM calibration and reduced onsite maintenance. Barco provides an inclusive warranty with extended backlight coverage options.

Sustainability
Rated A+ under Barco’s ecoscoring protocol: automatic standby when idle, use of post‑consumer recycled plastics, high percentage halogen‑free cables/PCBs and >90% recyclable packaging contribute to reduced lifecycle impact.

Technical specifications

• Screen technology: IPS
• Active screen diagonal: 812.80 mm (32.0")
• Active screen (W x H): 708.48 x 398.52 mm
• Aspect ratio: 16:9
• Resolution: 8MP (3840 x 2160 @ 60 Hz)
• Pixel pitch: 0.1845 mm
• Color imaging: Yes
• Gray imaging: Yes
• Bit depth: 30 Bit
• Viewing angle: 178° (H, V)
• Uniformity correction: ULT
• SteadyGray / SteadyColor: Yes
• Pathology setting: Yes
• Color gamut: NTSC 94%, sRGB 132%
• sRGB Delta E2000 (typical): Avg < 3, Max < 5
• RapidFrame: Yes
• Ambient light sensor and presets: Yes
• Front sensor: I‑Guard
• Presence sensor: Yes
• Maximum luminance (panel typical): 850 cd/m²
• DICOM calibrated luminance: 420 cd/m²
• Contrast ratio (panel typical): 1350:1
• Response time (typical): 12.7 ms
• Housing colours: Black (RAL 9004) / White (RAL 9003)
• Video input: 2× DisplayPort 1.4
• Video output: 1× DisplayPort (MST)
• USB: 2× USB‑B 2.0 upstream; 5× USB‑A 2.0 downstream (1 charge port)
• KVM switch: Yes
• Power: 24 Vdc, 8.3 A (external medical‑approved adapter)
• Power consumption: 60 W nominal; <0.35 W hibernate/off
• Dimensions with stand (W×H×D): 743 × 518–618 × 238 mm
• Dimensions without stand: 743 × 459 × 63 mm
• Weight with stand: 13 kg; without stand: 8.4 kg; packaged: 21 kg
• Ergonomics: Tilt -5° to +25°, Swivel -30° to +30°, Height adjust 100 mm, VESA 100 mm
• Recommended modalities: All digital images except digital mammography
• Certifications: CE0123 (Medical Device), FDA 510(k) K233693, CCC, KC, INMETRO, BIS, EAC (pending) and other safety/EMI/environmental standards
• Supplied accessories: User guide, installation sheet, documentation, video & mains cables, USB cable, external power supply
• Optional accessories: Display controller, touch pad
• QA software: QAWeb Enterprise
• Warranty: 5 years including 20,000 hours backlight warranty (extendable)
• Operating temperature: 0 °C to 35 °C
• Storage temperature: -20 °C to +60 °C
• Operating humidity: 8% to 70% non‑condensing
