Medical display MDFC-8232 3xB

surgicaloperating roomendoscopy

Short description

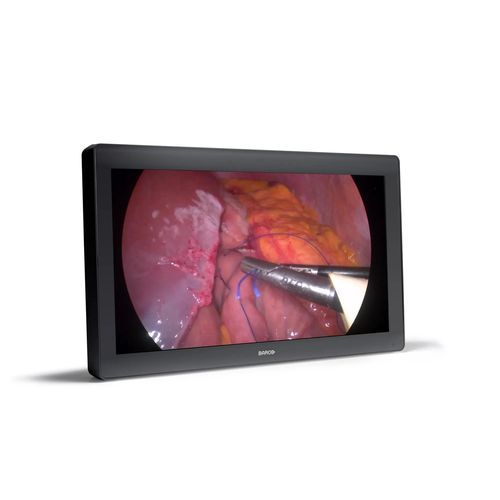

• 31.1" near-patient surgical monitor for 2D/3D endoscopy and microscope imaging — MDFC-8232 3xB (4K/UHD, 3D).

Key features

• Designed for UHD / FHD 3D endoscopy cameras; supports BT.2020 & BT.709 color spaces
• Configurable I/O: 12G-SDI / HDMI / DisplayPort / 3G-SDI options
• Ergonomic replaceable 3D eye-shield and lightweight frame for multi-user viewing
• Medical-grade full-glass front, scratch-resistant and easy to disinfect; snap-in lockable connector cover
• Near-zero latency video processing optimized for hand-eye coordination
• Wide color gamut with advanced color calibration (ITU-709, DCI-P3, BT.2020)

Description

• 31-inch near-patient monitor intended for use in modern surgical environments where accurate color reproduction and low-latency imaging are required.
• Proprietary video processing and advanced color calibration combined with a wide-gamut LCD deliver high color accuracy and detailed images with minimal artifacts. In 2D mode the panel provides resolution four times FHD for detailed UHD representation of patient anatomy.
• In 3D mode the supplied ergonomic kit (frame + replaceable 3D eye-shield) enables multiple users to view the same FHD content with consistent depth perception across different viewing angles and distances.
• Available as DP/HDMI (MDFC-8232 3HB) or DP/SDI (MDFC-8232 3SB); compatible with common 2D and 3D video formats from microscopes and laparoscopic camera systems.
• Full-glass front minimizes reflection and is easy to clean and disinfect; VESA-100 mounting supports surgical booms and spring arms.
• MDFC-8232 3HB variant is optimized for moving images and video; limited support for static interlaced formats. For full interlacing support, 12G variants are recommended — see the user guide for supported timings and configurations.
• White housing available on request.

Features (high level)

• Video processing optimized for low latency and noise reduction
• Picture-in-Picture, Picture-by-Picture, Image Mirror and Rotation
• Failover mode and screen clone on DVI out (2D: display clone; 3D: L/R view OSD selectable)
• FHD input upscaled to UHD; legacy signals accepted
• DC power output and cable cover

Specifications
Screen technology: TFT AM LCD / IPS-PRO technology / LED backlight
Active screen size (diagonal): 789 mm (31.1")
Active screen size (H x V): 698 x 368 mm
Aspect ratio: 17:9 / 16:9
Resolution: 4K / 2K (4096 x 2160) / UHD (3840 x 2160)
Pixel pitch: 0.1704 mm
Color support: 1,073 million (10-bit)
Color gamut: Native: 92% DCI-P3 / 105% Adobe
Color calibration: ITU-709, DCI-P3, BT.2020, BT.709
Viewing angle: 178° Hor. / 178° Vert.
Luminance: Max: 450 cd/m² (typ.); Native Color space: 390 cd/m² calibrated default value; @6500K: 360 cd/m² calibrated default value
Contrast ratio: 1300:1 (typ.)
Response time (T on + T off): 20 ms (typ.)
White point: Native: 7200K; Calibrated: 5600K, 6500K, 9300K
Gamma curve: 1.8, Video, 2.2, 2.4, DICOM
3D viewing distance: Optimal: 1500 mm; Minimum: 686 mm
Vertical viewing angle: @ Min viewing distance: 15° Up/Down; @ Optimal viewing distance: 8.0° Up/Down (crosstalk < 7%)
Lens type: Circular polarization: Left eye on top
Keyboard: Capacitive 7-key touch keyboard with enabling/disabling membrane switch
Video inputs (high level): 2D inputs include multiple DisplayPort configurations, 12G-SDI (3840 x 2160 @60Hz, only 3SB), HDMI 2.0 (3840 x 2160 @60Hz, only 3HB), DVI for FHD input (upscaled to 4K). 3D inputs include dual DP/SDI/HDMI configurations and 2x 3G-SDI (dual stream) for FHD.
Video outputs: 2x 3G-SDI (3G-SDI input loop through); 1x DVI (4K display screen clone - downscaled to 1080i/1080p)
Multi-image support: (2D only) Picture-in-Picture, Image Mirror and Rotation, Failover mode, Screen clone on DVI out, FHD input upscaled to UHD
Remote control: USB Type B port for firmware download & control protocol
External power supply: AC input: 100 – 240 VAC / 47-63 Hz auto-switch; DC output: +24 VDC / 10 A
DC power output: DC connector: +5V / 2A (also available on DVI, DP and USB ports)
Power consumption: Maximum: 168W (Max) / 24V ± 10%; Power-off: ~1W
Dimensions (W x H x D): 778 x 473 x 93 mm / 30.6 x 18.6 x 3.6 in
Net weight: MDFC-8232 3Hx = 14.4 kg; MDFC-8232 3Sx = 14.7 kg
Net weight packaged: 20 kg
Mounting standard: 100x100 & 200x100 mm VESA
Operating temperature: 0° C ~ 35° C
Storage temperature: -20° C ~ 60° C
Operating humidity: 10% ~ 90% R.H.
Storage humidity: 5% ~ 90% R.H.
Certification and compliance: ANSI/AAMI ES60601-1:2005/(R)2012; CSA CAN/CSA-C22.2 NO. 60601-1:14; IEC 60601-1 Edition 3.1 (2012); IEC 60601-1-2 (2014); FCC CFR 47 Part 15 Subpart B; GB17625.1-2012; GB4943.1-2011; GB/T9254-2008; CE, c-UL-us, DEMKO, CCC. Certifications: IP20 (IP45 front side only). Green compliance: ROHS-3, REACH, WEEE.

Technical specifications

• Model: MDFC-8232 3xB
• Screen: 31.1" (789 mm), 4K / UHD (3840 x 2160) or 4096 x 2160
• Color support: 10-bit (1,073 million)
• Color gamut: 92% DCI-P3 (native) / 105% Adobe
• Luminance (max): 450 cd/m² (typ.)
• Contrast ratio: 1300:1 (typ.)
• Video I/O: DisplayPort, HDMI2.0 (3HB), 12G-SDI (3SB), 3G-SDI, DVI
• Power: External supply 100–240 VAC; DC output +24 VDC / 10 A
• Dimensions (W×H×D): 778 × 473 × 93 mm
• Net weight: ~14.4–14.7 kg
• Warranty: 3 years
