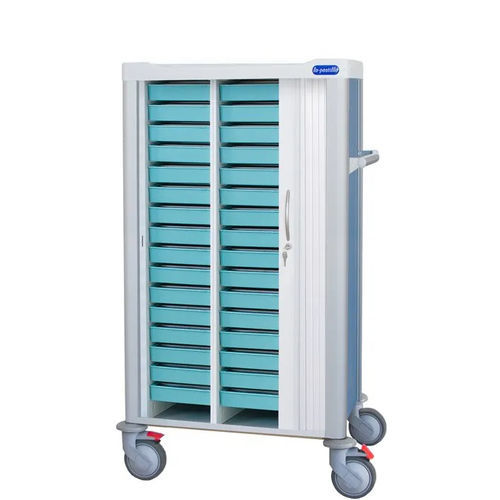

Medical trolley F-C-332

medicationnursingstorage

Overview
Weekly medication cart designed for weekly medication distribution in hospitals, nursing homes and care facilities. Accepts a range of weekly medication trays (sold separately) and is compatible with multiple external accessories to support clinical workflows.

Main features

• Easy to handle by a single operator.
• Design to reduce dirt accumulation and simplify cleaning.
• PVC roller shutter door with lateral opening (no need to bend).
• Lockable with key (optional digital/electronic lock available).
• 4 wheels Ø 125 mm, 2 with brakes; options for directional, antistatic or special wheels; all wheels fitted with bumpers.

Materials and construction

• Worktop: ABS/PC.
• Walls: phenolic panels.
• Inner guides: ABS.
• Structure: galvanized steel construction or compacmel options depending on model.

Accessories (examples)

• Glove holder.
• Folding side work surface / extendable worktop.
• Gel / soap dispenser and soap holder.
• Waste container with support.
• Accessory holder bar mounted in aluminium profiles for height/position adjustable accessories.

Indicated for use

• Hospitals.
• Nursing homes.
• Care homes and clinics.

Models & selected dimensions

• F-C-332 – Distribution cart for 32 weekly trays. Dimensions: 735 x 545 x 1150 mm (W x D x H).
• F-C-363 – Distribution cart for 63 weekly trays. Dimensions: 1126 x 537 x 1410 mm (W x D x H).
• F-C-532 – Distribution cart for 32 weekly trays. Dimensions: 735 x 545 x 1270 mm (W x D x H).
• F-C-554 – Distribution cart for 54 weekly trays. Dimensions: 1126 x 537 x 1410 mm (W x D x H).
• F-C-619 – Distribution cart for 19 weekly trays. Dimensions: 735 x 545 x 1270 mm (W x D x H).
• F-C-628 – Distribution cart for 28 weekly trays. Dimensions: 1126 x 537 x 1050 mm (W x D x H).
• F-C-644 – Distribution cart for 44 weekly trays. Dimensions: 1126 x 537 x 1410 mm (W x D x H).
• Convimed tray BLP-3100 (F-BLP-3100) – Weekly tray for 3100 system; 320 x 200 x 40 mm; 7 removable dispensers; adjustable/removable dividers; washable up to 60°C (do not use abrasive cleaners).
• Convimed tray BLP-5100 (F-BLP-5100) – Weekly tray 5100; 356 x 231 x 56 mm; 7 adjustable/removable pillboxes; coloured front labels and medication cups included; washable up to 60°C.
• Convimed tray BLP-6100-2 (F-BLP-6100-2) – Weekly tray 6100-2; 413 x 300 x 45 mm; 7 adjustable/removable pillboxes; medication cups with lids; washable up to 60°C.

Notes
The carts store weekly pill organisers (weekly trays sold separately). Interior configuration options (buckets/trays) are available to adapt the trolley to the chosen tray system.

Technical specifications

• Worktop: ABS / PC.
• Walls: phenolic panels.
• Inner guides: ABS.
• Structure: galvanized steel or compacmel depending on model.
• Door: PVC roller shutter door with lateral opening.
• Lock: key lock with 2 keys (option for digital lock).
• Wheels: 4 × Ø 125 mm (2 braked); options for directional, antistatic or special wheels; bumpers fitted.
• Accessories: glove holder, folding side work surface, gel/soap dispenser, soap holder, waste container, accessory bar for attachments.
• Trays: compatible with F-BLP series (3100, 5100, 6100-2); trays washable up to 60°C (avoid abrasive products).
