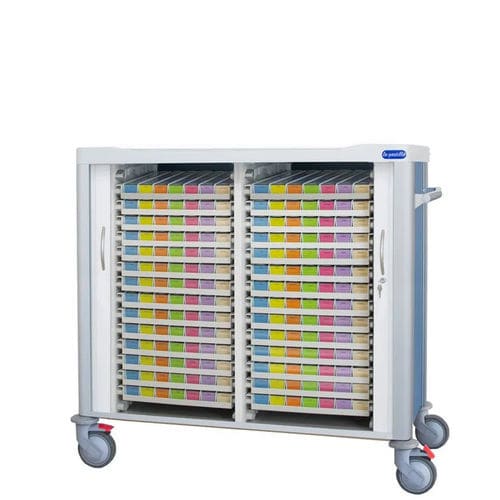

Medical trolley F-C-628

medicationnursingstorage

Overview
Weekly medication carts facilitate weekly medication distribution in hospitals, nursing homes and care homes. They store weekly pill organizers (weekly trays sold separately) and are designed to improve handling, hygiene and modularity.

Key features

• Easy to handle by one person.
• Improved hygiene design so dirt does not accumulate.
• PVC shutter door with lateral/side opening (no need to bend down).
• Lockable with key (possibility of adding a digital lock).
• Adaptable to a wide range of accessories (glove holders, extendable worktop, soap holder, waste bins, etc.).

Materials and construction

• ABS / PC worktop.
• Phenolic walls.
• ABS inner guides.
• Galvanized steel construction (and compacmel as part of the internal assembly).
• 4 wheels Ø 125 mm (2 with locking). Options available: directional, antistatic or special wheels. All wheels include bumpers.

Models and dimensions (examples)

• F-C-332 — Distribution cart with 32 weekly medication trays. Dimensions: 735 x 545 x 1150 mm (W x D x H).
• F-C-363 — Distribution cart for 63 weekly medication trays. Dimensions: 1126 x 537 x 1410 mm (W x D x H).
• F-C-532 — 32 weekly trays model. Dimensions: 735 x 545 x 1270 mm (W x D x H).
• F-C-554 — 54 weekly trays model. Dimensions: 1126 x 537 x 1410 mm (W x D x H).
• F-C-619 — 19 weekly trays model. Dimensions: 735 x 545 x 1270 mm (W x D x H).
• F-C-628 — 28 weekly trays model. Dimensions: 1126 x 537 x 1050 mm (W x D x H).
• F-C-644 — 44 weekly trays model. Dimensions: 1126 x 537 x 1410 mm (W x D x H).

Weekly trays (examples)

• Weekly medication tray 3100 — Ref: F-BLP-3100. 7 removable dispensers, adjustable/removable printed dividers for daily doses, sliding top cover openable from both sides, washable at 60 °C (do not use abrasive products). Dimensions: 320 x 200 x 40 mm.
• Weekly medication tray 5100 — Ref: F-BLP-5100. 7 adjustable and removable pillboxes, higher storage capacity than 3100 (even for envelopes), colored front labels for day/patient identification, includes medication cups for each daily dispenser, sliding top cover openable both sides, washable up to 60 °C. Dimensions: 356 x 231 x 56 mm.
• Weekly medication tray 6100-2 — Ref: F-BLP-6100-2. 7 adjustable and removable pillboxes, removable transparent front for colored labels per day, medication cups with lids in each daily dispenser, sliding top cover openable both sides, washable up to 60 °C. Dimensions: 413 x 300 x 45 mm.

Accessories included

• Key lock (2 keys).
• Gel/soap dispenser (bracket-mounted).
• Folding side work surface.
• Soap holder.
• Waste container.
• Glove holder.

Compatible accessories and options

• Accessory holder bar mounted on aluminum profiles allows adjustable height and position for accessories.
• Optional wheels: directional, antistatic, special types.
• Security options: possibility of adding a digital lock instead of the key lock.

Notes

• Weekly trays are not included with the cart and are sold separately.
• There is a wide range of internal configuration options (different buckets/trays depending on the cart model) to adapt storage to operational needs.

Technical specifications

• Materials: ABS/PC worktop, phenolic walls, ABS inner guides, galvanized steel structure.
• Door: PVC shutter door with lateral opening (ergonomic access).
• Lock: Key lock supplied (2 keys) with option for digital lock.
• Wheels: 4 wheels Ø 125 mm, 2 with brake; bumpers fitted on all wheels; optional directional/antistatic/special wheels available.
• Tray compatibility: Designed to store weekly medication trays (examples: BLP-3100, BLP-5100, BLP-6100-2). Trays differ in capacity and dimensions as listed above.
• Accessories: glove holder, extendable/folding worktop, gel/soap dispenser, soap holder, waste container, colored front labels for trays, medication cups.
• Hygiene: components washable (trays washable up to 60 °C; avoid abrasive products).
• Available configurations: multiple models offering storage ranges (19, 28, 32, 44, 54, 63 trays) with model-specific dimensions as listed.
