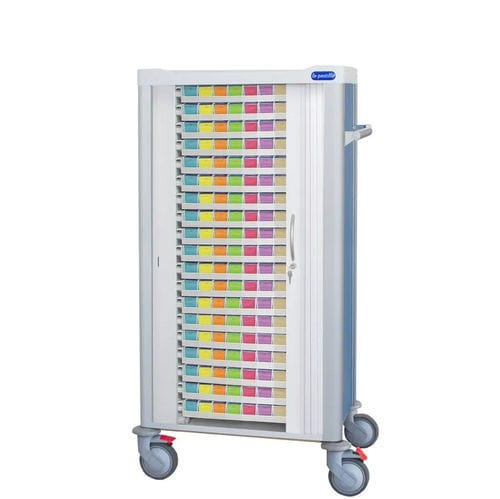

Medical trolley F-C-619

medicationtransportnursing

Overview
Medication carts from the Convimed F-C series are designed for weekly medication distribution in hospitals, nursing homes and clinics. Carts accept modular weekly trays (trays sold separately) and are available in multiple capacities to suit different workflows.

Main features

• Single-operator handling for routine rounds.
• Design reduces dirt accumulation and eases cleaning.
• PVC lateral shutter door to avoid bending.
• Key lock standard; digital/electronic lock optional.
• Compatible with a wide range of external accessories.

Indicated for use

• Hospitals
• Nursing homes
• Care homes and outpatient clinics

Materials and construction

• Worktop: ABS/PC.
• Walls: phenolic panels.
• Inner guides: ABS.
• Frame: galvanized steel construction or compacmel depending on model.

Wheels and mobility

• 4 wheels Ø 125 mm, 2 locking.
• Optional wheels: directional, antistatic or special types.
• All wheels fitted with bumpers.

Accessories (examples)

• Key lock with 2 keys; optional electronic lock.
• Gel or soap dispenser (wall/bracket mount options).
• Folding/extendable side worktop.
• Soap holder, waste container, glove holder.
• Accessory holder bar in aluminium profiles for modular mounting and height adjustment.

Weekly medication trays — types & features

• Weekly tray 3100 (Ref: F-BLP-3100): 7 removable dispensers; adjustable/removable dividers; sliding cover openable both sides; washable to 60 °C. Dimensions: 320 x 200 x 40 mm.
• Weekly tray 5100 (Ref: F-BLP-5100): 7 adjustable removable pillboxes; front label area for dose ID; medication cups in each daily compartment; sliding cover; washable to 60 °C. Dimensions: 356 x 231 x 56 mm.
• Weekly tray 6100-2 (Ref: F-BLP-6100-2): larger capacity; removable transparent fronts for identification; lids for daily cups; sliding cover; washable to 60 °C. Dimensions: 413 x 300 x 45 mm.

Distribution cart model examples & capacities
Examples of common F-C models and typical capacities (trays sold separately): F-C-332 — 32 weekly trays — 735 x 545 x 1150 mm (W x D x H). F-C-363 — 63 weekly trays — 1126 x 537 x 1410 mm. F-C-532 — 32 weekly trays — 735 x 545 x 1270 mm. F-C-554 — 54 weekly trays — 1126 x 537 x 1410 mm. F-C-619 — 19 weekly trays — 735 x 545 x 1270 mm. F-C-628 — 28 weekly trays — 1126 x 537 x 1050 mm. F-C-644 — 44 weekly trays — 1126 x 537 x 1410 mm.

Notes

• Weekly trays are not included with the carts and must be ordered separately.
• PVC shutter doors open laterally to reduce operator bending.
• Accessories attach to the aluminium accessory holder bar and are adjustable in height and position.

Technical specifications

• Worktop: ABS/PC.
• Walls: phenolic panels.
• Inner guides: ABS.
• Frame: galvanized steel or compacmel according to model.
• Shutter door: PVC lateral opening.
• Lock: key lock with 2 keys (digital lock optional).
• Wheels: 4 x Ø125 mm (2 locking); optional antistatic/directional/special wheels; bumpers on all wheels.
• Tray compatibility: compatible with trays 3100, 5100, 6100-2 (tray type determines capacity).
• Typical dimensions examples: F-C-332 735 x 545 x 1150 mm; F-C-363 1126 x 537 x 1410 mm; others as listed above.
