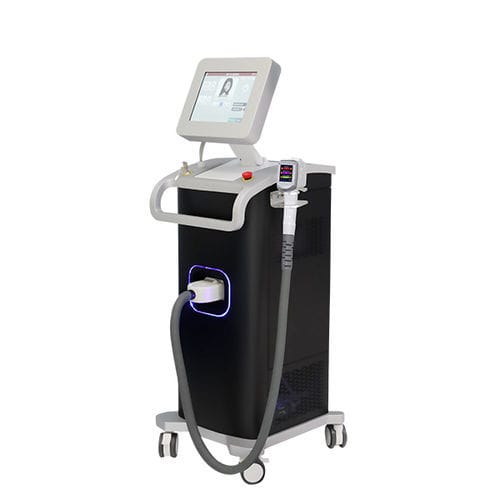

Hair removal laser 900W

diodetrolley-mountedcontinuous

Product Summary
Diode laser hair removal system featuring non-channel handle technology and a TEC-assisted semiconductor cooling loop that isolates water flow from the laser chip to reduce contamination risk. The design provides sustained cooling performance suited for clinical and professional aesthetic use.

Key Features

• Permanent hair reduction across all hair colors and areas including upper lip, beard, chest, back, arms, legs and bikini perimeter.
• Adjunct indications: effective in treatment of certain pigmented lesions and acne-associated findings.
• Skin improvement benefits: reduces roughness, minimizes enlarged pores, refines fine lines, and reduces redness.
• Supports skin whitening, tightening and elasticity enhancement through controlled thermal stimulation.
• Promotes epidermal renewal by accelerating repair of damaged skin tissue.
• Durable handpiece using imported laser modules; handle lifetime rated up to 100 million pulses.
• Large rectangular spot (15×27 mm) for uniform energy distribution, improved penetration and treatment speed; optional facial tip available.
• Advanced TEC (thermoelectric) cooling down to approximately -4°C to protect epidermis while delivering effective follicle heating.
• Intuitive touchscreen interface with Expert and Custom modes for clinical workflows.
• Modular design for simplified maintenance; OEM/ODM options available.

Product Brief
Laser Type: Diode Laser
Wavelengths: 808nm + 755nm + 1064nm
Laser Bars: 6, 8 or 10 bars available
Cooling System: Water + Air fans + Semiconductor (TEC)
OEM & ODM: Professional design and production

STANDARD CONFIGURATION
Laser type: Non-channel diode hair removal
Laser wavelength: 808nm (primary)
Chip type: USA Princeton Optronics
Pulse width: 5–400 ms, adjustable
Frequency: 1–10 Hz (continuous mode)
Fluence: 1–120 J/cm²
Display interface: 10.4-inch color touch screen
Handle display: 2.8-inch color touch screen
Spot size: 15×27 mm (facial tip optional)
Output power example: 900W (6 chips configuration)
Input power: 3000W
Power supply: 110/230V ±10%, 50/60Hz

Other Important Notes

• Continuous operation: approximately 1.24 hours of non-stop firing under normal conditions; overheating or overloading will trigger cooling warnings and require cooldown intervals.
• Extended heavy use can reduce apparent treatment efficiency; strong cooling system and energy control help maintain performance under high workload.

Technical Specifications

• Model: 900W
• Brand: VCA LASER
• Laser type: Diode Laser (non-channel design)
• Wavelengths: 808nm, 755nm, 1064nm
• Chip: USA Princeton Optronics
• Pulse width: 5–400 ms (adjustable)
• Frequency: 1–10 Hz (continuous mode)
• Fluence: 1–120 J/cm²
• Spot size: 15×27 mm (facial tip optional)
• Display: 10.4-inch color touch screen; 2.8-inch handle touch screen
• Cooling: Water + Air fans + Semiconductor (TEC cooling to approx. -4°C)
• Output power example: 900W (6 chips)
• Input power: 3000W
• Power supply: 110/230V ±10%, 50/60Hz
• Design: Modular for easy maintenance; OEM/ODM available
