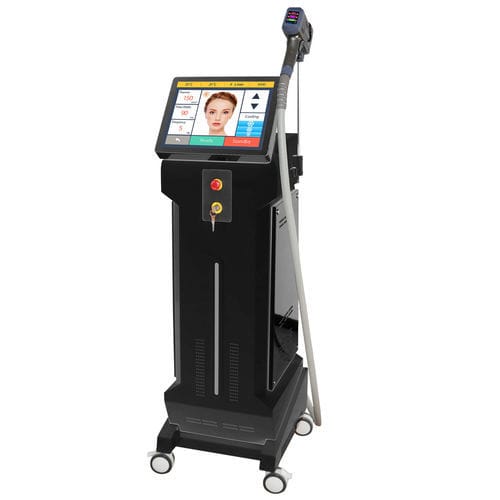

Hair removal laser VD70

sapphirediodetrolley-mounted

Product Summary

• Warranty: 3 Years
• Handles: 2
• Lifespan: 200 Million Shots
• Certifications: CE / FDA / RoHS
• Function: Permanent Hair Removal

Key Features

• Large hand piece: improved heat dissipation and effective cooling for safer treatments.
• Interchangeable treatment head: cost-effective replacement and targeted spot sizes.
• Water level LED indicator: clear monitoring of coolant level during operation.
• Fast plug connector: simplified connection for operation and transport.

Product Description
The VD70 system employs a long pulse-width 808nm diode laser combined with 755nm and 1064nm wavelengths to reach and selectively target hair follicles. By selective light absorption of hair melanin, the system heats and destroys the hair shaft and follicle while applying advanced cooling technology to protect epidermal tissue, ensuring safe and comfortable professional treatments for a wide range of skin and hair types.

Technical table

• Laser Type: Semiconductor laser
• Laser Wavelength: 755 + 808 + 1064 nm (combined)
• Laser Energy Output: 1–120 J/cm²
• Pulse Width: 10–400 ms adjustable
• Pulse Frequency: 1–10 Hz
• Display: 12.1" color touch LCD
• Handle Display: 2.4" color touch screen
• Cooling System: Semiconductor cooling + water cooling + air cooling + sapphire cooling
• Pressure Rating: 10 bars
• Peak Power: 2000 W
• Spot Sizes: 15×27 mm, 15×15 mm, 12×12 mm; optional combinations and 9×9 mm; optional facial tip
• Probe Temperature Range: -10 to 0 °C
• Power Source: 110/220V ±10%, 50/60 Hz

Additional Notes

• Multiple handpiece/tip options support different spot sizes and a facial tip for delicate areas.
• Designed for professional permanent hair removal treatments with emphasis on patient safety and comfort.

Specifications / Technical data

• Model: VD70
• Brand: VCA LASER
• Warranty: 3 years
• Handles: 2
• Lifespan: 200 million shots
• Certifications: CE / FDA / RoHS
