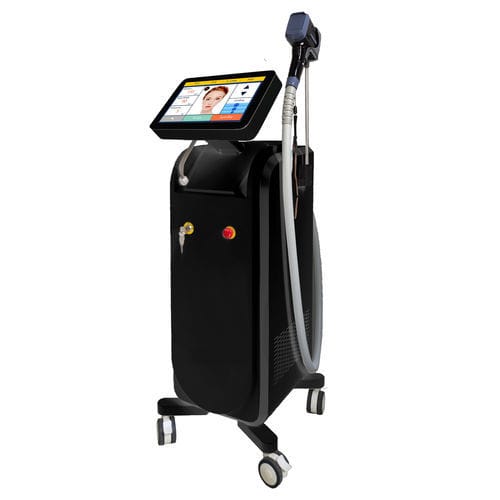

Hair removal laser VD15

sapphirediodetrolley-mounted

Product Overview
Diode laser hair removal system VD15 by VCA LASER for clinic and medical‑aesthetic use. Configurable multi‑wavelength platform (755 / 808 / 1064 nm) designed to treat a range of skin phototypes and hair types. Contact sapphire cooling and modular power options enable continuous operation and treatment customization.

Key parameters (from product brief)

• Laser output power (mentioned): up to 1600W (various configurations available)
• Energy density: 1–72 J/cm²
• Repetition rate / Frequency: 1–10 Hz (some configurations up to 15 Hz)
• Cooling system: air compressor cooling; configurations may include semiconductor + water + air cooling
• Transport package: aluminum packing

Wavelengths & Indications

• 808 nm: Gold standard for most hair types; suitable for many natural/yellow skin tones.
• 755 nm: More effective on fine, blonde or lighter hair; suitable for lighter skin phototypes.
• 1064 nm: Designed for dark or tanned skin and dark hair; deeper penetration for higher phototypes.

Features

• Short treatment time: large spot sizes and high repetition rates reduce session duration and increase throughput.
• Contact cooling: continuous sapphire tip contact cooling to improve patient comfort and reduce thermal risk.
• Stable energy delivery: wide pulse‑width range (10–400 ms adjustable) and multiple output power modules for consistent results.
• Ergonomic handle: integrated controls on the handpiece for direct adjustment of temperature and energy settings.

Advantages / Certifications

• Certifications: TUV 13485 and CE (as stated).
• Use of imported laser chips with long expected service life (stated up to 100,000,000 shots).
• Modular cooling and power supply options (including Mean Well power supply referenced) to support continuous clinic operation.
• Safety features: hydro‑power isolation fast plug connections and multiple cooling modes for operational reliability.

Technical parameters

• Laser type: semiconductor diode laser
• Wavelengths: 755 / 808 / 1064 nm
• Pulse width: 10–400 ms, adjustable
• Spot size options: 9 cm × 9 cm; 12 cm × 12 cm; 15 cm × 15 cm; 15 cm × 27 cm
• Cooling: semiconductor cooling + water cooling + air cooling (configurable); sapphire contact tip
• Power source: 110/220 V
• Frequency: 1–10 Hz (configurations up to 15 Hz)
• Output power variants referenced: 300 W / 500 W / 1000 W / 1200 W / 1600 W

Handpiece / Applicator
Integrated handpiece controls for on‑handle adjustment of energy and temperature. Sapphire contact tip for skin cooling and consistent thermal conduction. Multiple applicator sizes for treatment of small to large areas.

Packaging & Transport
Aluminum packing for secure transport; modular units for clinic installation.

Notes
Multiple configurations and power modules allow selection for clinic or beauty center workflows. Wavelength selection (755 / 808 / 1064 nm) enables customization according to skin phototype and hair characteristics.

Model & specifications

• Model: VD15
• Brand: VCA LASER
• Expected laser‑chip lifetime (stated): up to 100,000,000 shots
• Certifications: TUV 13485, CE (stated)
• Transport package: Aluminum packing
