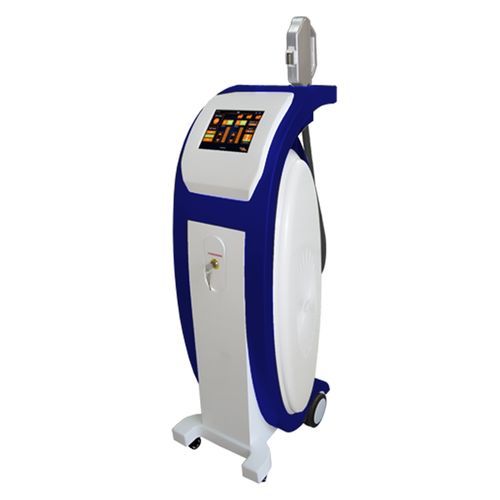

Hair removal IPL system VE81

skin rejuvenationpigmented lesion treatmenttransportable

Product Overview
VCA LASER VE81 Elight system integrating IPL/SHR and RF functions for hair removal, pigment/freckle treatment and skin rejuvenation; intended for salon and professional aesthetic use.

Quick Summary

• Theory: IPL/SHR with RF support
• Type: Optical laser/Elight hair removal system
• Application: Salons, aesthetic clinics
• Portable: Portable unit with multiple handpieces
• Input power: 3500W (drive power 2600W)
• Screen: 8.4" color touch screen

Key Features

• SHR technology for averaged single-pulse energy delivery, enabling effective hair reduction with reduced discomfort.
• Single-pulse emission mode for even energy distribution and lower burn risk vs. multi-pulse IPL.
• DEC identification technology simplifies operation and enhances treatment safety.
• High-frequency operation (1–10 Hz) to accelerate treatment speed for large areas.
• Supports Stationary and In-motion treatment modes for efficient coverage of back, legs and arms.
• Counter handle supported for multi-handle workflows and simultaneous use.

Compared to normal IPL machines

• SHR provides averaged single-pulse emission versus IPL multi-pulse, reducing energy concentration in the first pulse and lowering burn risk.
• SHR filters violet and infrared bands and reduces water absorption in target tissue to minimize side effects.
• DEC identification improves ease of use and operational safety.
• Higher repetition rates (1–10 Hz) increase procedure speed.
• Stationary and In-motion modes enable faster treatment of large areas than conventional IPL.

Product parameters

• Model: VE81
• Brand: VCA LASER
• Wavelength options: 640–950 nm / 690–950 nm / 750–950 nm
• Spot size options: 8×40 mm², 15×50 mm², 12×30 mm², 12×45 mm²
• Energy range: 1–36 J/cm²
• Pulse repetition rate: 1–10 Hz
• Pulse: Single
• Pulse duration (Pulse on): 2–15 ms
• Continual shooting timer: 1–30 s
• Water tank temperature: 38 °C
• Display: 8.4" color touch screen
• Drive power: 2,600W (input power: 3,500W)
• Power supply: 220V 50Hz or 110V 60Hz
• Dimension: 51 × 39.5 × 106 cm (L × W × H)
• Languages supported: English, Spanish, Turkish, Italian, German, Polish, Portuguese, French

Notes
Product images illustrate multiple handpieces and handpiece options for treatment delivery. The device integrates IPL/Elight/SHR with RF skin rejuvenation and pigment/freckle treatment capabilities.

Technical specifications

• Model: VE81
• Brand: VCA LASER
• Wavelengths: 640–950 nm / 690–950 nm / 750–950 nm
• Spot sizes: 8×40 mm²; 15×50 mm²; 12×30 mm²; 12×45 mm²
• Energy: 1–36 J/cm²
• Pulse rate: 1–10 Hz
• Pulse width: 2–15 ms
• Continuous shooting time: 1–30 s
• Drive power: 2,600W (brief lists input power 3,500W)
• Water tank temperature: 38 °C
• Display: 8.4" color touch screen
• Power supply: 220V 50Hz or 110V 60Hz
• Dimensions: 51 × 39.5 × 106 cm
• Supported UI languages: English, Spanish, Turkish, Italian, German, Polish, Portuguese, French
