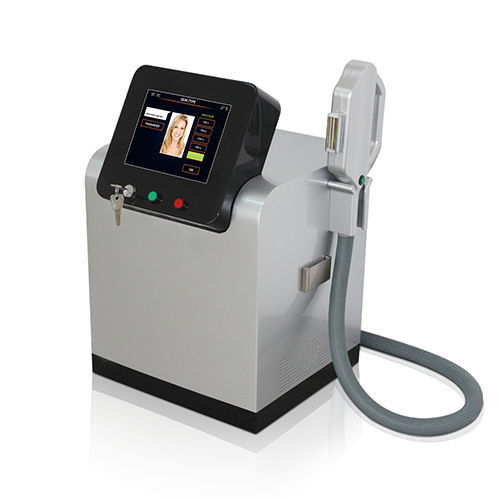

Hair removal IPL system VE9

skin rejuvenationvascular lesion treatmentpigmented lesion treatment

Product brief
Theory: IPL / SHR / E‑Light (with RF)
Type: Laser beauty equipment for hair removal and skin rejuvenation
Application: Salon and clinical aesthetic use
Portable: Portable version available
Wavelength: 640–950 nm / 560–950 nm

Description
The VE9 is a multifunctional aesthetic device integrating SHR, IPL and E‑Light modes to perform hair removal, acne reduction, vascular lesion treatment and pigment correction. The system delivers intense pulsed light combined with RF energy (E‑Light) to target hair follicles and chromophores in the dermis while supporting epidermal protection and improved clinical outcomes. It is designed for continuous professional use in salons and medical aesthetic clinics.

Theory / How it works
SHR (Super Hair Removal) uses an In‑Motion delivery that applies low fluence, high repetition pulses to progressively heat the hair follicle with reduced discomfort. E‑Light combines IPL with synchronized RF to enhance energy penetration and efficacy on deeper targets such as pigmentation and vascular structures, enabling complementary treatments in a single platform.

Advantages

• All‑in‑one system: SHR + IPL + E‑Light modes cover hair removal, skin rejuvenation, acne and vascular/pigment treatments.
• VE9 handpiece uses a sapphire crystal window and high‑quality imported flash lamp for stable, consistent shots.
• Triple cooling (semiconductor + wind + water) ensures safe long‑term operation and epidermal protection during continuous use.
• Robust metal chassis and secure packing designed for safe transport and clinical durability.

Product parameters
Display: 8.4 / 10.4 / 15 / 19 inch color touch screen
Lamp-house: Super intense pulsed light
Output power: 2400W
RF delay: 100–3000 ms
Light release modes: single and multiple‑shot selectable (including rapid multi‑shot modes)
Spot sizes: 30 × 12 mm² (standard); optional 16 × 50 mm²
Pulse interval: 1–99 ms (adjustable)
Skin cooling: ≤0–1°C
Wavelength ranges: 640–950 nm and 560–950 nm
Working period: continuous / 24‑hour standby operation
Cooling method: semiconductor + wind + water cooling
Operating voltage: 110V/230V ±10%, 50/60Hz, 12A

Technical specifications

• Model: VE9
• Brand: VCA LASER
• Theory: IPL / SHR / E‑Light (RF)
• Type: Laser beauty equipment (hair removal & skin rejuvenation)
• Application: Salon, clinic, professional aesthetic use
• Portable: Yes (portable version available)
• Display options: 8.4", 10.4", 15", 19" color touch screen
• Lamp-house: Super intense pulsed light
• Output power: 2400W
• RF delay range: 100–3000 ms
• Light release modes: selectable single and multi‑shot
• Spot sizes: 30 × 12 mm²; optional 16 × 50 mm²
• Pulse interval: 1–99 ms (adjustable)
• Skin cooling capability: ≤0–1°C
• Wavelength ranges: 640–950 nm; 560–950 nm
• Working period: continuous / 24‑hour standby
• Cooling methods: semiconductor + wind + water cooling
• Operating voltage: 110V/230V ±10%, 50/60Hz, 12A
