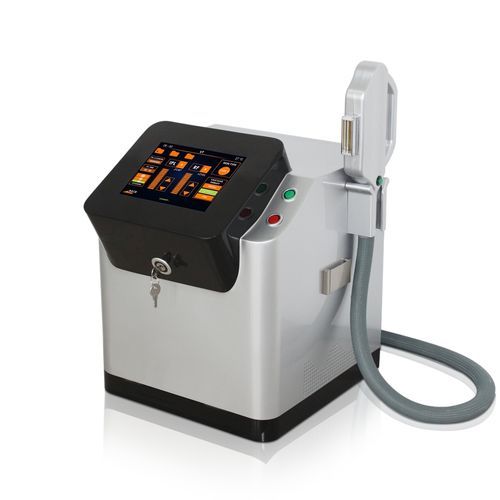

Hair removal IPL system VE10

skin rejuvenationvascular lesion treatmentpigmented lesion treatment

Product Brief
Theory: IPL SHR
Type: IPL Skin Rejuvenation / Hair Removal
Application: Commercial / Clinical use
Portable: Portable design
Certificates: TUV, ISO13485

Product Description

• Elight + IPL + SHR 3-in-1 system for permanent hair reduction and complementary skin treatments. Designed for professional clinics and commercial beauty centers, combining multiple light-based modalities in one device.

Applications

• Permanent hair removal
• Pigmentation treatments (spots, lentigines, freckle reduction)
• Skin rejuvenation (skin tightening, fine wrinkle reduction, brightening)
• Acne treatment
• Vascular therapy (superficial vascular lesions)

Theory
SHR (Super Hair Removal) integrates intense pulsed light and advanced pulse delivery (In‑Motion mode) to provide rapid, comfortable treatments with long-term hair reduction. The method reduces pain perception and improves skin protection compared with conventional single‑pulse systems.

Product Parameters
Fluence Energy: 1–50 J/cm²
Pulse Duration: 1–10 ms
Number of Pulses: 1–6 (adjustable)
Cooling System: Wind cooling; Water recycle system; Semiconductor cooling
Integrated Skin Cooling: -5℃ to +3℃
Spot Sizes (fixed handle): 30×12 mm², 40×13 mm², 50×15 mm²
Spot Sizes (high-power handle): 40×8 mm², 40×14 mm², 50×14 mm²
Drive Peak Power: 3000 W
Display: LCD touch screen (intelligent operation)

Machine Advantages

• Multi-modal platform enabling a range of aesthetic and dermatological treatments
• 8.0-inch color LCD touch screen with intuitive menu for clinical workflows
• Durable ABS enclosure with compact, transportable design
• Integrated cooling ensures treatment comfort and safety (operating cooling range noted: -5℃ to +3℃)
• Automatic monitoring of water level and flow for device safety and longevity
• Stable continuous operation for efficient treatment sessions
• Multi-language interface for international use

Characteristics / Technical Specifications

• Model: VE10
• Brand: VCA LASER
• Theory: IPL SHR (Super Hair Removal)
• Type: IPL Skin Rejuvenation / Hair Removal
• Application: Commercial / Clinical use
• Portable: Yes
• Certificates: TUV, ISO13485
• Fluence Energy: 1–50 J/cm²
• Pulse Duration: 1–10 ms
• Number of Pulses: 1–6 (adjustable)
• Cooling System: Wind cooling; Water recycle system; Semiconductor cooling
• Integrated Skin Cooling: -5℃ ~ +3℃
• Spot Sizes (fixed): 30×12 mm², 40×13 mm², 50×15 mm²
• Spot Sizes (high-power handle): 40×8 mm², 40×14 mm², 50×14 mm²
• Drive Peak Power: 3000 W
• Display: LCD touch screen (intelligent operation)
