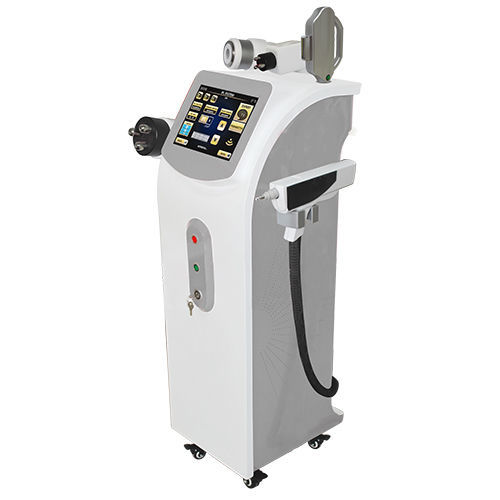

RF body contouring unit VV50

laser skin resurfacing unitultrasound lipolysis unitvacuum suction body contouring unit

Product Overview
Multifunctional medical aesthetic platform combining Vacuum, E-light (IPL), Radio Frequency (RF), Nd:YAG laser and Ultrasonic Cavitation for body contouring, hair removal, tattoo and pigment lesion treatments.

How does it work?
The VV50 integrates five clinically applied technologies to target different tissues and indications: selective photothermolysis with IPL/E-light, RF-induced dermal heating for remodeling, wavelength-specific Nd:YAG for pigment/tattoo fragmentation, ultrasound cavitation for adipocyte disruption, and vacuum-assisted manipulation to enhance coupling and lymphatic drainage.

E-light (IPL)
E-light combines intense pulsed light with controlled preheating to target chromophores in epidermis and dermis, creating selective photothermal effects for hair removal, pigmentation and skin rejuvenation.

RF (Radio Frequency)
Adjustable RF (1–40 MHz) delivers controlled volumetric heating in the dermis, inducing immediate collagen contraction and stimulating neocollagenesis to improve skin laxity and wrinkles.

Laser Tattoo Removal (Nd:YAG)
Nd:YAG wavelengths (1064 nm and 532 nm) are absorbed by specific pigments; laser pulses fragment ink particles, which are expelled or cleared by immune processes over time.

Ultrasound Cavitation
Low-frequency ultrasound generates microbubbles in adipose tissue that implode, damaging adipocytes and cellulite structure. Integrated vacuum facilitates tissue contact and promotes fluid and debris removal during treatment.

Application

• Permanent hair reduction
• Body slimming and contouring
• Tattoo removal: eyebrow, eyelid, lip line and cosmetic tattoos
• Wrinkle reduction and skin tightening
• Removal of pigmented lesions and speckles
• Skin rejuvenation and pore minimization
• Treatment of vascular lesions and telangiectasia
• Treatment of acne scars and traumatic scarring
• Removal of freckles, age spots, birthmarks and superficial to deeper pigmentation

Additional Information
Warranty: 3 years warranty and lifetime maintenance support. Training: user manual, treatment manual, technical manual and training video. Certifications: TUV ISO13485, CE, Free Sale certificate, Medical Device Production Licence. Quality: approximately 80% imported components. OEM/ODM: mold and painting services available; multilingual software supported.

Technical Specifications

• Model: VV50
• Brand: VCA LASER
• E-light Head (RF+IPL) - Filters: Bipolar RF+IPL; Spot size: 12×30 mm or 12×46 mm; IPL Energy: 10–50 J/cm²; IPL Wavelengths: 430/530/560/590/640/690/750 nm; RF Energy: 1–100 J/cm²
• IPL Head - Spot size options: 8×40 mm, 15×35 mm or 15×50 mm; Energy: 10–50 J/cm²; Pulse duration: 1–20 ms; Pulse sequence: 1–20 pulses; Pulse delay: 1–50 ms; Integrated skin cooling: -4–+10 °C; Interface: 12.4" TFT true color LCD touch screen; IPL Power: 2000 W; Power supply: AC 110–240 V / 50–60 Hz
• RF Head - Unipolar (options: bipolar or multipolar); RF frequency: 1/10 MHz optional
• Cavitation Head - Standard: 40 kHz frequency; Options: 28 kHz / 80 kHz / 1 MHz
• Vacuum - Type: Negative; Performance: 100 kPa
