Hair removal laser VQ83

skin rejuvenationtattoo removalNd:YAG

Product name

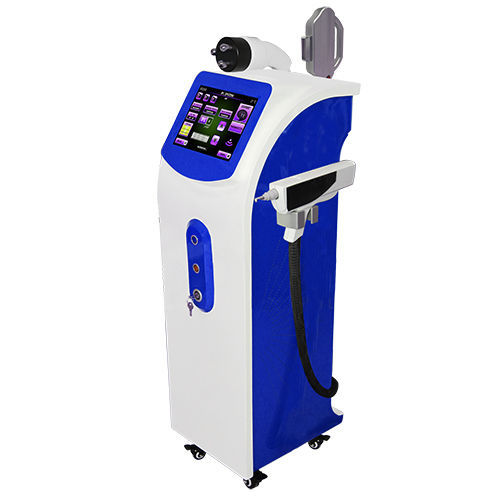

4-in-1 IPL + E-light + Bipolar RF + Nd:YAG laser multifunction system VQ83 — Brand: VCA LASER

Overview
This is a multifunctional medical-aesthetic device combining IPL, E-light, bipolar RF and Nd:YAG laser in one platform. It is engineered for clinical applications including hair removal, skin rejuvenation, pigment and vascular treatments, wrinkle reduction, skin tightening and tattoo removal, with configurable handpieces for treatment versatility.

Main features

• Integrated 4-in-1 system: IPL, E-light, bipolar RF and Nd:YAG laser on a single console.
• Multiple treatment indications: hair removal, skin rejuvenation, pigment and vascular therapy, wrinkle improvement, skin tightening and tattoo removal.
• Interchangeable handpieces/probes, including standard Nd:YAG probes and optional skin-rejuvenation probes.
• Ergonomic design: separate LCD CPU panel, large touchscreen interface, caster wheels for mobility and modular construction for simplified maintenance.
• High-quality components: imported coolant system and high-capacity capacitors for clinical reliability.
• ODM/OEM support: customizable mold, interface, logo and parameter presets.

How it works
The combined modalities operate as follows:

• Nd:YAG laser: delivers high-energy nanosecond pulses to fragment pigment particles and ink, allowing selective photothermolysis for tattoo and deep pigment treatment.
• IPL / E-light: applies broad-spectrum light with controlled fluence to heat the dermis and target hair follicles, pigment and vascular lesions while sparing surrounding tissue.
• RF: supplies fractional thermal energy into the deep dermis to induce collagen remodeling, improving laxity and wrinkles.

Benefits

• Consolidates multiple clinical treatments in one device, reducing equipment footprint.
• Modular, service-friendly design for faster maintenance and minimal downtime.
• Large configurable touch LCD for treatment protocols and brand integration.
• Global after-sales technical support and training options.

Technical summary tables
IPL / E-light system
IPL energy density: 1-50 J/cm² | E-light energy density: 1-50 J/cm²
IPL frequency / interval: 1-4 s | E-light frequency / interval: 1-4 s
Pulse number (IPL): 1-6
Spot size (IPL): 15 x 50 mm | E-light standard wavelengths: 480 nm / 530 nm / 590 nm / 640 nm / 690 nm
E-light optional spot sizes: 13 x 30 mm² / 13 x 40 mm²

Nd:YAG laser / RF system
Nd:YAG laser energy: 1600 mJ
Nd:YAG probe wavelengths: 1064 nm / 532 nm (standard; skin-rejuvenation probe optional)
RF energy density: 1-50 J/cm²
RF frequency: 6 MHz
RF delay: 100-1500 ms
RF pulse frequency range: 1-6 Hz | Interval: 1-4 s
Nd:YAG spot diameter: 4-8 mm
RF spot sizes: 20 / 28 / 35 mm diameter

Applications / Typical treatments

• Hair removal (IPL / E-light)
• Skin rejuvenation and pigment reduction (IPL, E-light, Nd:YAG)
• Tattoo removal (Nd:YAG)
• Vascular lesion treatment (IPL / E-light)
• Wrinkle reduction, skin tightening, body lifting assistance (RF)
• Adjunct procedures such as breast lift assistance

Technical specifications

• Model: VQ83
• Brand: VCA LASER
• System composition: IPL + E-light + Bipolar RF + Nd:YAG laser (4-in-1)
• IPL / E-light energy density: 1-50 J/cm²
• IPL / E-light frequency / interval: 1-4 s
• IPL pulse number: 1-6
• IPL spot size: 15 x 50 mm (E-light optional spots 13 x 30 mm² / 13 x 40 mm²)
• E-light standard wavelengths: 480 / 530 / 590 / 640 / 690 nm
• Nd:YAG laser energy: 1600 mJ
• Nd:YAG probe wavelengths: 1064 nm / 532 nm (standard)
• RF energy density: 1-50 J/cm²
• RF frequency: 6 MHz
• RF delay: 100-1500 ms
• RF pulse frequency range: 1-6 Hz
• Nd:YAG spot diameter: 4-8 mm
• RF spot size options: 20 / 28 / 35 mm diameter
• Typical applications: hair removal, tattoo removal, pigment reduction, vascular therapy, skin rejuvenation, wrinkle reduction, skin tightening, body lifting assistance
