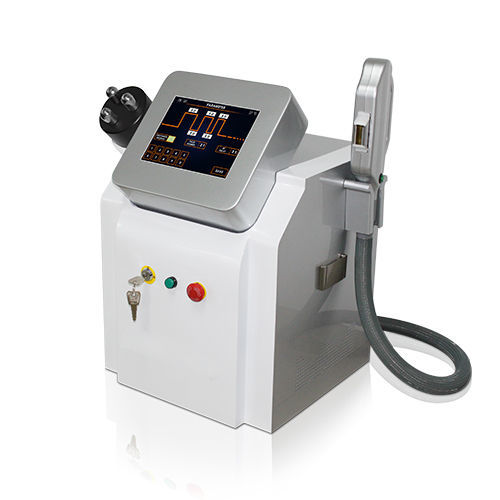

Hair removal IPL system VM6

skin rejuvenationtrolley-mounted

Overview
3-in-1 device combining Elight (RF+IPL), IPL/SHR and RF technologies for skin rejuvenation, permanent hair removal and related aesthetic treatments. Integrated cooling and multiple handpieces support a range of clinical protocols for facial and body procedures.

How it works
The system integrates three technologies: Elight (RF+IPL) uses combined electrical impedance and selective optical absorption to generate controlled thermal effects for skin tightening and rejuvenation. RF delivers deep dermal heating to denature collagen and stimulate neocollagenesis, improving tissue contraction and wrinkle reduction. SHR (Super Hair Removal) uses an In-Motion technique with rapid pulses to provide efficient, low‑pain hair removal and enhanced epidermal protection.

Main components and functions

• Elight (RF+IPL) handpiece for combined RF and IPL treatments.
• Multiple IPL/SHR handpieces with selectable spot sizes for hair removal and skin therapies.
• RF handpiece (standard unipolar; bipolar or multipolar optional) for skin tightening.
• Cavitation head for ultrasonic body contouring (optional frequencies available).
• Integrated skin cooling system to protect the epidermis during treatments.

Product Advantage

• 1. All-in-one 3-in-1 solution: SHR + Elight + IPL for versatile protocols.
• 2. Pure sapphire crystal windows for improved optical penetration.
• 3. Recommended spot sizes: 16×50 mm for hair removal (HR), 8×34 mm for skin rejuvenation (SR).
• 4. High-performance cooling (semiconductor + air + fan) enabling up to 12 hours continuous operation.
• 5. Custom 3000W power supply with four large Panasonic capacitors for stable output.
• 6. Medical-grade handle tubing (Germany standard) for durability and safety.

Before & After
Illustrative before-and-after images are provided on the product page to demonstrate combined-treatment results (images not included here).

Service & Support
Manufacturer warranty and lifetime maintenance options available. Supplied training materials: user manual, treatment manual, technology manual and training videos. Certifications referenced: TUV ISO13485, CE and relevant medical production documentation. OEM/ODM and multilingual software options offered.

Technical data (table)
Elight Head (RF+IPL) - Filters: Bipolar RF+IPL
Spot size: 12×30 mm or 12×46 mm
IPL Energy: 10~50 J/cm2
IPL Wavelengths: 430 / 530 / 560 / 590 / 640 / 690 / 750 nm
RF Energy (Elight head): 1~100 J/cm2

IPL Head
Spot size: 8×40 mm or 15×35 mm or 15×50 mm
Energy: 10~50 J/cm2
Pulse duration: 1~20 ms
Pulse sequence: 1~20 pulses
Pulse delay time: 1~50 ms
Integrated skin cooling: -4~+10 °C
Operative interface: 12.4-inch TFT true colour LCD touch screen
IPL Power: 2000 W
Electrical source: AC 110–240 V / 50–60 Hz

RF Head
Type: Unipolar (options: bipolar or multipolar)
RF frequency options: 1 / 10 MHz optional

Cavitation Head
Standard: 40 kHz frequency head
Options: 28 kHz / 80 kHz / 1 MHz

Vacuum
Negative pressure: 100 kPa
