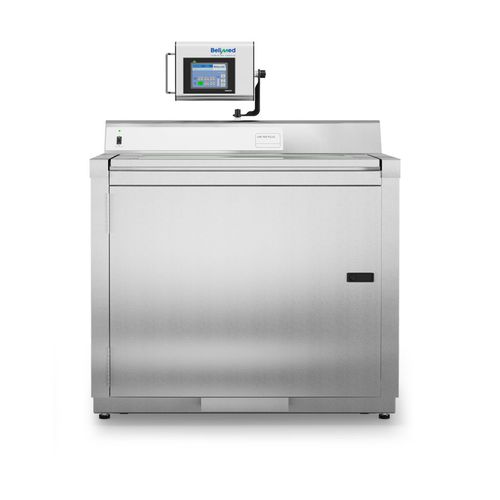

Ultrasonic ultrasonic bath 565 series

medicalfor the decontamination of medical deviceshigh-capacity

Overview
The 565 PLUS Series ultrasonic instrument cleaner uses ultrasonic cavitation, heated water and controlled detergent injection to clean a wide range of surgical instruments — from heavy orthopedic sets to cannulated devices and daVinci EndoWrist instruments. It is engineered for maximum tray load and instrument length capacity while minimizing footprint; PLUS = two-tray capacity, PLUS3 = three-tray capacity.

Key features

• Safety glass lid: visual confirmation of full submersion; manually liftable with damped closing for safe handling.
• Instrument connection options: press-fit connections for daVinci EndoWrist and other cannulated devices, twist Luer locks, and a flexible diaphragm for non-Luer cannulated instruments.
• Controlled access: three login levels (User, Manager, Technician) to protect cycle and parameter settings.
• Pre-programmed cycles: three factory cycles covering general, cannulated, and robotic instruments with wash, detergent injection, and rinse steps.
• High-capacity trays: PLUS supports two trays; PLUS3 supports three. Each loaded tray capacity up to 70 lbs; typical empty tray weight up to 25 lbs.

Focus areas

• Accurate detergent dosing: flow-meter based dosing with pre-filter, touchscreen level indicator and reset control for repeatable dosing.
• Effective cleaning: integrated water mixing valve and temperature display; PLUS3 includes additional ultrasonic transducers and higher power for enhanced performance.
• Reliable operation and data management: electronic water-level sensors, intuitive display for process monitoring, USB data export, password-protected access levels. Optional pump for wall-mounted drain and powered lid rated for 70 lb tray lift capacity.

Configurations

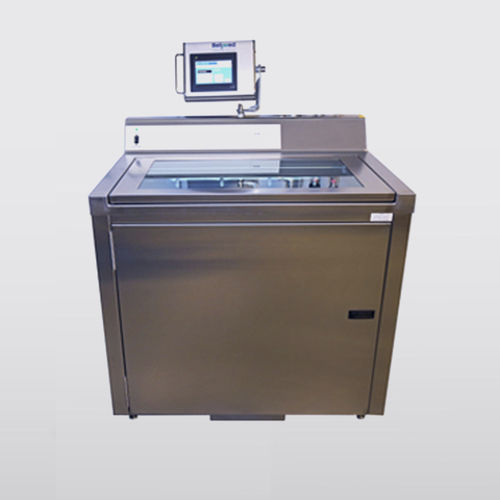

565 PLUS
External dimensions, lid open (WxLxH): 42" (1,067 mm) x 28.5" (724 mm) x 53.5" (1,359 mm)
Height to top of lid when closed: 36" (914 mm)

565 PLUS3
Three-tray wash chamber
External dimensions (WxLxD): 32 x 15 x 16 in / 813 x 381 x 406 mm

Applications
Designed for sterile processing departments and high-throughput environments where space is limited. Suitable for cleaning and rinsing heavy orthopedic sets, cannulated instruments and robotic instruments (e.g., daVinci EndoWrist).

Technical specifications

• Product family: 565 PLUS Series (PLUS: 2-tray; PLUS3: 3-tray).
• Cleaning method: ultrasonic cavitation with heated water and detergent injection.
• Tray capacity: PLUS = 2 trays; PLUS3 = 3 trays.
• Maximum supported tray + instrument load: up to 70 lbs (per tray).
• Typical empty tray weight supported: up to 25 lbs each.
• PLUS3: additional ultrasonic transducers and higher ultrasonic power compared with PLUS.
• Pre-programmed cycles: three (general, cannulated, robotic) including wash, detergent injection and rinse.
• Detergent dosing: flow meter with pre-filter; touchscreen detergent level indicator and reset control.
• Water control: integrated mixing valve; water temperature display.
• Sensors & monitoring: electronic water-level sensors; display for flow and process information; USB data export.
• Security: password-protected access with three login levels (User, Manager, Technician).
• Instrument connections: press-fit for EndoWrist, twist Luer locks, flexible diaphragm for non-Luer cannulated instruments.
• Optional items: pump for wall-mounted drain; powered lid with 70 lb tray lift capacity.
• External dimensions (565 PLUS, lid open): 42" x 28.5" x 53.5" (1,067 x 724 x 1,359 mm); closed height to top of lid: 36" (914 mm).
• External dimensions (565 PLUS3 chassis/chamber): 32 x 15 x 16 in (813 x 381 x 406 mm).
