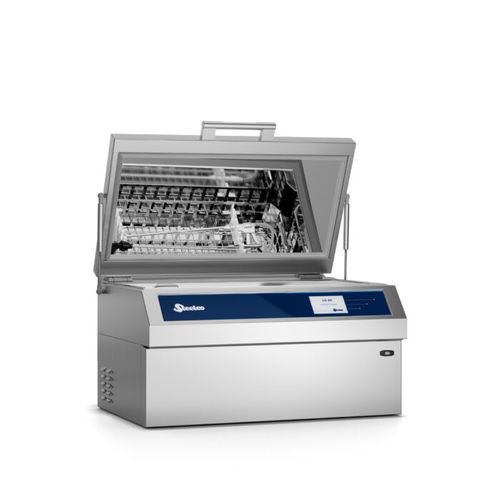

Medical ultrasonic bath US 80

laboratoryfor the decontamination of medical devicescompact

Overview
US 80 is a small-footprint tabletop ultrasonic cleaning system designed for pre-treatment of hollow reusable medical devices such as MIS instruments and rigid endoscopes. The unit is supplied with a removable washing tray that accommodates up to 12 instruments. Active Flush technology combines ultrasonic cavitation with a powerful internal flush to improve cleaning of lumens and internal channels. Ported instruments connect via standard Luer lock fittings; non-ported instruments use injection sleeves with silicone seals. The removable tray enables loading and instrument connection on a separate workbench.

Features

• Active Flush technology: combines ultrasonic cavitation and targeted flushing inside canulated and hollow instruments to enhance cleaning effectiveness.
• Removable washing tray: allows loading and connecting instruments on an external workbench for ergonomic workflow.
• Automatic chemical dosage: integrated automatic dosing system for consistent process chemistry and correct detergent dosing.

Certifications
Designed to comply with EN ISO 14971, EN 61010-1/2-040, EN IEC 61326-1, EN 62366 (safety) and EN 62304 (software). Classified as CE medical device under Regulation 2017/745/EU (MDR).

Dimensions
Overall dimensions (W x D x H): 760 x 560 x 398 mm — 29.9” x 21.65” x 15.7”
Basket dimensions: 600 x 250 x 100 mm — 23.62” x 9.84” x 3.94”

Technical specifications

• Model: US 80
• Brand: SteelcoBelimed
• Product type: Tabletop pre-treatment ultrasonic washer
• Application focus: Hollow reusable medical devices and MIS instruments
• Washing tray capacity: up to 12 instruments
• Technology: Active Flush (ultrasonic cavitation combined with flushing)
• Tray: removable washing tray for separate loading and connection
• Connection for ported instruments: standard Luer lock connectors
• Connection for non-ported instruments: injection sleeves with silicone seals
• Chemical dosing: automatic chemical dosage system
• Certifications/Standards: EN ISO 14971; EN 61010-1/2-040; EN IEC 61326-1; EN 62366; EN 62304; CE (MDR 2017/745)
• Overall dimensions (W x D x H): 760 x 560 x 398 mm / 29.9” x 21.65” x 15.7”
• Basket dimensions: 600 x 250 x 100 mm / 23.62” x 9.84” x 3.94”
