Ultrasonic ultrasonic bath 246C

medicallaboratoryfor the decontamination of medical devices

Product overview

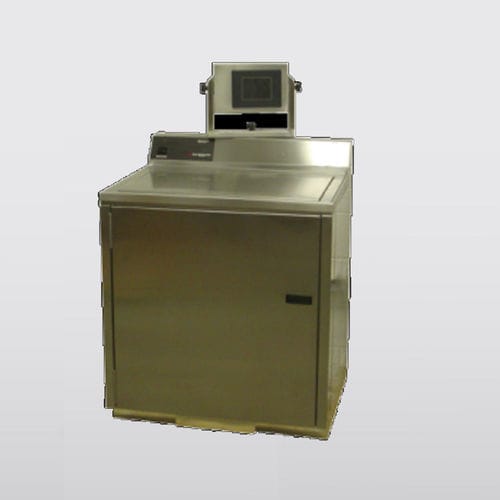

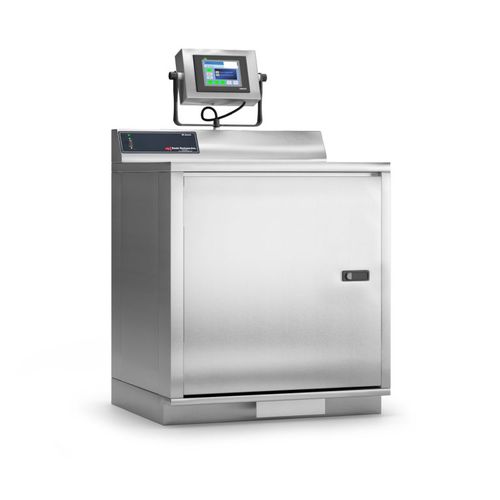

The 246C ultrasonic cleaner by SteelcoBelimed is a self-contained single-chamber washer engineered for efficient cleaning of surgical instruments, cannulated devices and general SPD ware. It integrates automated loading/unloading, built-in detergent dosing and tank heating in a compact footprint ideal for small to medium sterile processing departments.

Key features

• Automated power lid and Aqua-liftTM tray elevator for hands-free loading and unloading.
• Built-in tank heater and automatic detergent injector with onboard storage for consistent dosing.
• Single tray console with 35 lb capacity and compact footprint suitable for small/medium SPDs.
• Easy service access to plumbing, relays and ultrasonic components for fast maintenance.
• Smart Water Fill with selectable 5", 7.5" or 10" fill levels for process control.
• Automated tray handling: lift tray elevator with automatic raise/lower; compatible with hands-free toe switch and auto-rise at cycle end.
• Safety systems including door interlocks, lid switches and liquid level sensor.
• Detergent dosing adjustable from the touchscreen for precision and repeatability.

Detailed highlights

• Highly effective cleaning — Ultrasonic frequency and high watt density are optimized to remove heavy soil. Optional 10-port irrigation system flushes debris from cannulated instruments; built-in chamber heater maintains optimal solution temperature.
• Robust construction — Vacuum-brazed transducers with metal-to-metal tank bonding, seam-welded stainless steel tank and frame resist corrosion and deformation for long service life.
• Intuitive operation — Top-mounted touchscreen with single-button and menu-driven controls for wash/detergent times, water fill level, tank flush and sensor diagnostics.
• Ergonomic design — Water-pressure-driven lid/basket lift and toe-switch compatibility reduce operator strain and enable safe, efficient handling of baskets and instruments.

Dimensions
Outer Dimensions (HxWxD): 3.5 x 33 x 28.5 in
1359 x 838 x 724 mm
Wash Chamber Dimensions (HxWxD): 15 x 24 x 13 in
381 x 609 x 330 mm

Technical specifications

• Model: 246C
• Brand: SteelcoBelimed
• Configuration: Single chamber ultrasonic cleaner (single washing tank)
• Capacity: Single tray, 35 lb (≈16 kg)
• Standard equipment: Automated power lid, Aqua-liftTM tray elevator, tank heater, automatic detergent injector with onboard storage
• Optional: 10-port irrigation system for cannulated instruments
• Materials & construction: Stainless steel frame and seam-welded tank/top assembly; vacuum-brazed transducers with metal-to-metal bonding
• Controls: Top-mounted touchscreen interface; single-button and menu-driven operation
• UI functions: Wash and detergent times, water fill level, tank flush, sensor diagnostics, detergent dosing adjustment
• Water fill levels: 5", 7.5", 10"
• Ergonomics: Water-pressure-driven lid/basket lift; hands-free toe switch for lid operation
• Serviceability: Easy access to plumbing, electrical relays and ultrasonic components
• Safety: Door interlocks, lid switches, liquid level sensor
