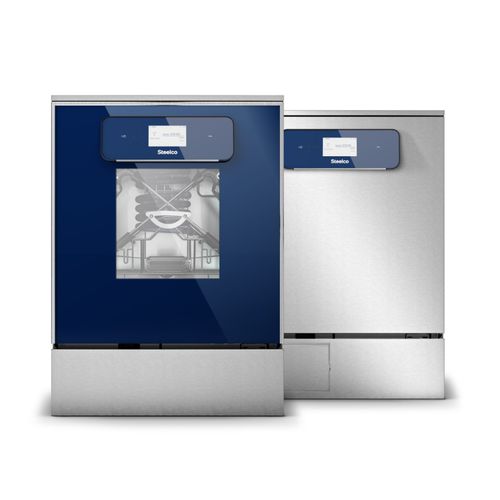

Surgical instrument washer-disinfector DS 50 series

for anesthesia equipmentbottlefor the medical sector

Overview
We developed a complete range of undercounter washer-disinfectors for reprocessing medical devices in doctors’ surgeries and clinics. Designed for performance, flexibility and sustainability, the range delivers consistent cleaning and drying across specialties. Available with a glass or stainless-steel door, the units include functions for processing general and lumened instruments while optimising resources and integration in sterile workflows.

Enhanced Efficiency

• Variable-speed pump for high cleaning performance.
• Sensor technology for reliable process control.
• Gap-free rinsing chamber and multi-stage filter system for elevated hygiene.

Accessibility
User-friendly colour touch display with intuitive navigation, quick access to favourite programmes, clear status overview, multilanguage interface with fast language switching during operation, and on-screen how-to guides to support staff training and reduce errors.

AutoOpen
AutoOpen technology: the door automatically opens at cycle end once chamber temperature drops below 70°C, allowing residual moisture to evaporate naturally and accelerating drying.

Drying options

• Eco drying: suited for general items; reduces energy consumption while providing gentle drying. Available for DS 5010. Automatic door opening at cycle end supports moisture removal.
• Active drying: hot-air active drying with HEPA filtration for fast, thorough drying—suitable for high-throughput environments and complex hollow instruments. Available for DS 5011 and DS 5020. Filter maintenance accessible via a front plinth cover.

Optimized loading
Load carriers (upper and lower baskets, load trolleys, inserts) accept a broad spectrum of instruments and maximise chamber utilisation, enabling more instruments and packaging materials per cycle.

Applications

• Surgical and MIS instruments
• GYN / ENT instruments
• Ophthalmic instruments
• Anaesthesia instruments
• Theatre shoes
• Baby bottles

Features

• Sustainability: application-specific economical wash cycles and short programme times reduce water, energy and detergent consumption.
• Durability: engineered for 15,000 operating hours with spare-parts support for 15 years.
• High capacity: up to 8 DIN sieve trays; example configurations include 44 ENT hollow instruments with additional load or 42 ENT specula.
• AutoClose: light-touch door closing.
• Chamber lighting: courtesy and chamber lights to simplify loading, unloading and monitoring.
• Serviceability: key components positioned for service-friendly access; fast commissioning.

Configurations
DS 5010
Available with stainless-steel or full-glass door.
Overall Dimensions (HxDxW): 820 x 598 x 598 mm
Load Capacity: Up to 8 DIN sieve trays or 44 ENT hollow instruments with additional load or 42 ENT specula.

DS 5011
Available with stainless-steel door.
Overall Dimensions (HxDxW): 820 x 598 x 598 mm
Load Capacity: Up to 8 DIN sieve trays or 44 ENT hollow instruments with additional load or 42 ENT specula.

DS 5020
Available with full-glass door.
Overall Dimensions (HxDxW): 820 x 598 x 898 mm
Load Capacity: Up to 8 DIN sieve trays or 44 ENT hollow instruments with additional load or 42 ENT specula.

Certifications
Designed to comply with EN ISO 15883-1/2 (performance), EN ISO 14971, EN 61010-1/2-040, EN IEC 61326-1, EN 62366 and EN 62304. Classified as CE0297 medical devices under Regulation 2017/745/EU (MDR).

Technical specifications

• Series name: New Undercounter Series.
• Models: DS 5010, DS 5011, DS 5020.
• Overall dimensions: DS 5010 / DS 5011 = 820 x 598 x 598 mm; DS 5020 = 820 x 598 x 898 mm.
• Load capacity: up to 8 DIN sieve trays; up to 44 ENT hollow instruments with additional load; up to 42 ENT specula.
• Door options: stainless-steel door or full-glass door (model-dependent).
• Cleaning system: variable-speed pump, gap-free rinsing chamber, multi-stage filter system.
• Process control: sensor technology; intuitive colour touch display; multilanguage interface.
• Drying: Eco drying (DS 5010); Active drying with HEPA filter (DS 5011, DS 5020).
• AutoOpen: automatic door opening when chamber < 70°C to accelerate drying.
• AutoClose: light-touch automatic door closing.
• Serviceability: front-accessible components and plinth filter cover for maintenance.
• Durability: designed for 15,000 operating hours; spare parts support for 15 years.
• Resource optimisation: short programme times and economical wash cycles.
• Compliance: CE0297 and standards listed above.
