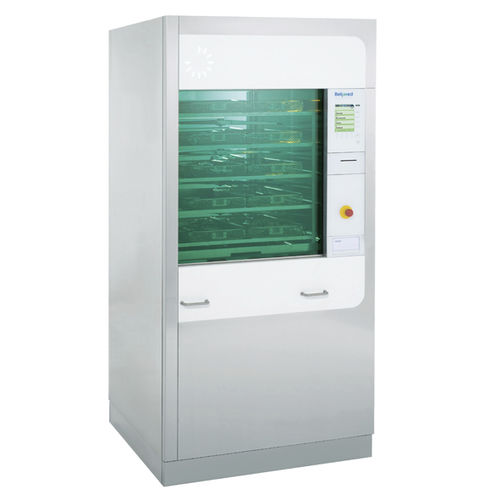

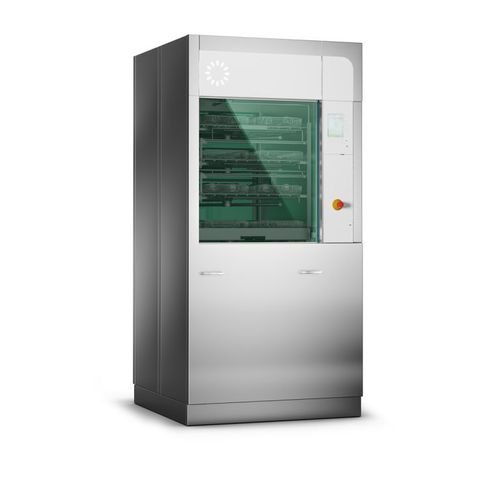

Laboratory washer-disinfector WD 290

for the medical sectorfor containersfor glassware

Product overview
WD 290 is a high-capacity washer-disinfector designed for CSSD / instrument reprocessing. The machine features a 350 L stainless-steel chamber (1.4404 / AISI 316L), a high-volume / low-pressure water circulation system and a compact 90 cm width, enabling reprocessing of up to 18 DIN trays while minimising footprint and resource use.

Key benefits and design

• Designed for efficient daily operation in modern CSSDs
• Automatic vertical sliding glass doors for safe and ergonomic loading/unloading
• Illuminated chamber (integrated halogen lighting) for clear process visibility
• Intuitive user interface for simplified operation and process monitoring
• Wide range of racks, trays and loading accessories for instruments, containers and labware
• Compact 90 cm width with front-access serviceability for easy maintenance
• Short cycle times to support high-throughput workflows (quick program example: 35 min)

Technologies and features

• High-volume / low-pressure water circulation system for effective cleaning of complex loads
• Smart Fill: sensor-controlled fill strategy saving up to 30% water per cycle
• Patented clock-style process status indicator showing remaining time, readiness and faults—visible at a distance
• Wash chamber in stainless steel 1.4404 (AISI 316L) for corrosion resistance and durability
• Integrated halogen chamber lighting for inspection during cycles
• Capacity: up to 18 DIN trays; chamber volume: 350 L

Notes
Only available in China.

Technical specifications

• Model: WD 290
• Product type: Washer-disinfector for CSSD / instrument reprocessing
• Capacity: up to 18 DIN trays
• Chamber volume: 350 L
• Chamber material: stainless steel 1.4404 (AISI 316L)
• Water system: high-volume / low-pressure circulation
• Water saving: Smart Fill technology (up to 30% water saving)
• Process indicator: patented clock-style status indicator
• Doors: automatic vertical sliding glass doors
• Lighting: integrated halogen chamber lighting
• User interface: intuitive touchscreen / controls for process visibility
• Accessories: racks, trays, loading trolleys and application-specific inserts
• Design: compact (90 cm width), front-service access
• Quick program: example cycle down to 35 minutes
• Availability: Only available in China
