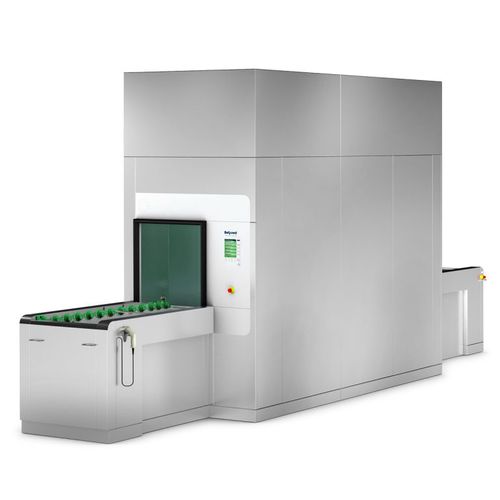

Laboratory washer-disinfector WD 390

for surgical instrumentsfor anesthesia equipmentfor containers

Overview

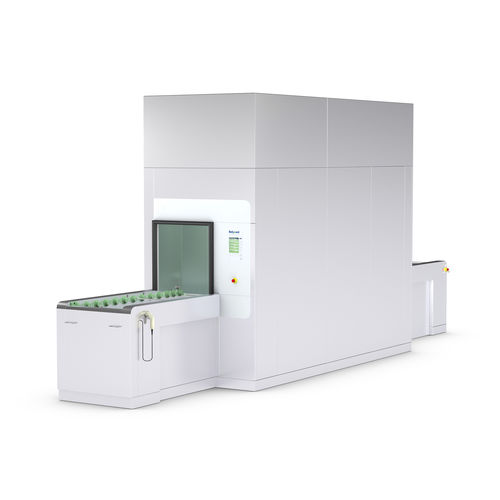

The WD 390 is a multi-chamber washer-disinfector developed for high throughput and fully automated instrument processing in sterile services. It is available in 3- and 4-chamber configurations and can be equipped with an optional integrated ultrasonic module. Only available in China.

Design & User Interface
The unit features green glass doors, an illuminated chamber and display, an ergonomic control panel with intuitive controls and a patented status display that provides a clear view of cycle progress and machine status.

Core washing & filtration components
The washer-disinfector includes a stainless-steel wash pump with pressure monitoring and a sterile H14 filter with pressure control to ensure consistent process conditions and particle filtration.

Automation & throughput
WD 390 offers fully integrated automation to support continuous material flow and high capacity. Depending on configuration it processes up to 75 DIN trays per hour. Automatic inlet and outlet sections are available in various lengths and can be configured with up to three driven positions.

Transport system
The automatic transport system with basket return conveyor reduces manual handling and supports uninterrupted workflow between loading and unloading stations.

Connectivity & documentation
SmartHub connectivity enables batch documentation, archiving of cycle data and remote access to machine status and reports via a web application for sterile services management.

Racks, accessories & compatibility
A wide range of racks and accessories supports surgical and MIS instruments, anesthesia trays, containers, laboratory items and other wash goods. Racks are compatible with WD 290 / WD 290 IQ for flexible fleet integration.

Key advantages

• Compact footprint with one-sided service access and divisible service compartment for simplified maintenance
• Smart tank solutions and monitored circuits for optimized resource consumption
• Modular configurations to match departmental throughput requirements
• Durable stainless-steel components designed for continuous use
• High automation level to minimise manual handling and standardise workflows

Notes
Only available in China.

Technical specifications

• Product type: Multi-chamber washer-disinfector
• Model: WD 390
• Configurations: 3-chamber or 4-chamber
• Optional: Integrated ultrasonic module
• Doors: Green glass doors
• Chamber: Illuminated chamber and display
• User interface: Intuitive controls; patented status display
• Wash pump: Stainless steel with pressure monitoring
• Filtration: Sterile H14 filter with pressure control
• Throughput: Up to 75 DIN trays per hour (depending on configuration)
• Automation: Fully integrated automation; automatic inlet/outlet sections (up to 3 driven positions)
• Transport: Automatic transport system including basket return conveyor
• Compatibility: Racks compatible with WD 290 / WD 290 IQ
• Connectivity: SmartHub support for batch documentation and remote access
• Compliance: EN ISO 15883-1 and -2
• Availability: Only available in China
