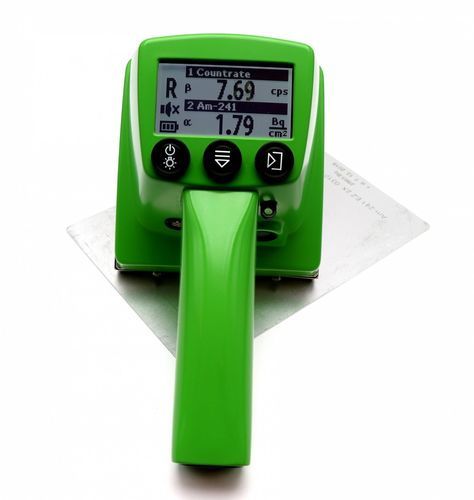

Radiometer PAM series

Short description
Portable handheld instruments of the PAM-100 series for surface activity measurement of alpha, beta and gamma emitting radionuclides, suitable for contamination monitoring in industrial, medical and security environments.

Applications

• Nuclear facilities
• Waste management
• Ionizing radiation metrology
• Nuclear medicine
• Non‑nuclear industry
• Homeland security

Key Features

• Gasless scintillation detector
• Compact, lightweight and resistant design
• User‑friendly interface, ease of use
• High sensitivity with uniform response
• Fast selection from stored measurement presets
• Two settable alarm levels
• Fast replacement of light‑tight foil
• Optional ambient dose rate measurement

Description
The PAM-100 series are portable handheld activity meters designed for surface contamination monitoring. Models A, B and C have suppressed gamma sensitivity to allow correct discrimination of alpha and/or beta contamination where gamma background is low to moderate. Models B and C are specifically suitable for environments with elevated and variable gamma background (e.g., nuclear power plants). Monitor models D and E provide increased gamma sensitivity where required.

Technical specifications

• Product code: PAM-100 (series)
• Device type: Portable handheld activity meters for surface contamination (alpha, beta, gamma)
• Detector: Gasless scintillation detector
• Design: Compact, lightweight, resistant
• Sensitivity: High sensitivity with uniform response; models A/B/C feature suppressed gamma sensitivity; models D/E have increased gamma sensitivity
• Models B and C: suitable for environments with elevated and variable gamma background (e.g., nuclear power plants)
• Operation: User‑friendly interface with fast selection from stored measurement presets
• Alarms: Two settable alarm levels
• Maintenance: Fast replacement of light‑tight foil
• Optional feature: Ambient dose rate measurement (optional on certain models)
• Note: Product design and specifications are subject to change without prior notice or obligation
